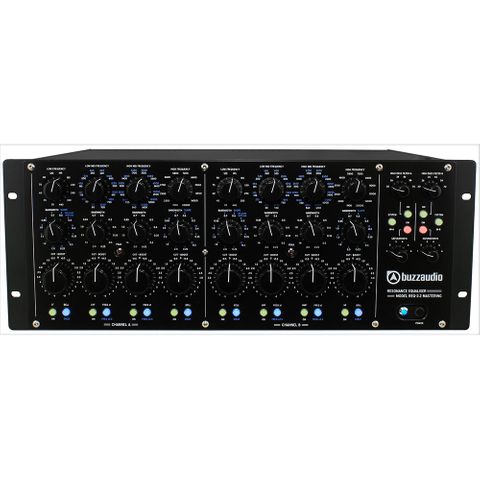

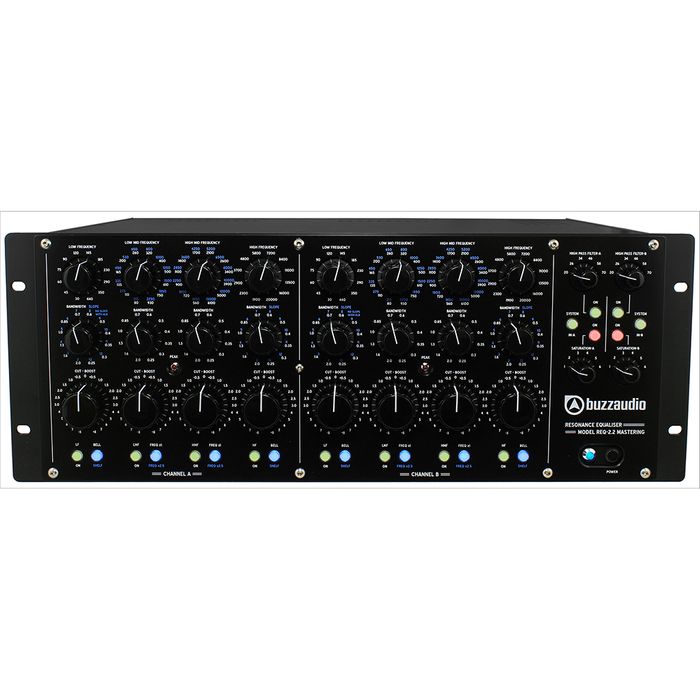

Buzz Audio REQ-2.2ME Resonance Mastering Equalizer
Description
The Resonance Factor
The REQ-2.2 mastering equalizer utilises parallel resonant circuits in a clever configuration whereby the bandwidth (Q) of the circuit can be adjusted like an active filter, but without any complex relay switching. The inductor/capacitor resonant "tank" eq circuit runs at a low internal signal level which avoids any inductor saturation effects. The overall result is the sound of real choke based filters with a big open sound, but without the limitation of only a few - or no bandwidth selections as found on traditional choke eq's.
Audio Path Quality
As you would expect, the REQ uses BE40 True Class A circuits developed for the MA-2.2 microphone amplifier for superlative audio performance. It also utlilizes BE44 discrete line driver at the output that acts like a transformer and can respond to balanced or unbalanced loads.
But sometimes you might need a bit more color, so it includes a saturation section that introduces measured amounts of low frequency harmonic distortion via a steel audio transformer driven by a single ended tansistor amplifier. The High Pass Filter is placed in the beginning of the eq chain and the Low Band eq section is placed last in the chain. This layout produces the best overall equalizer coherency.
Operational Beauty
The large knobs and positive feel of the switching make the REQ a pleasure to operate and everything is visually clear when mounted into a console. In total there are 72 frequency choices per channel with overlapping selections across the four bands so you can always find the centre frequency you are looking for. A looping line XLR input and two parallel XLR outputs provide flexible connection options in the mastering control room. Finally, low glare rustic silver finish and retro Elma knobs give the REQ an impressive look in your rack!
Options

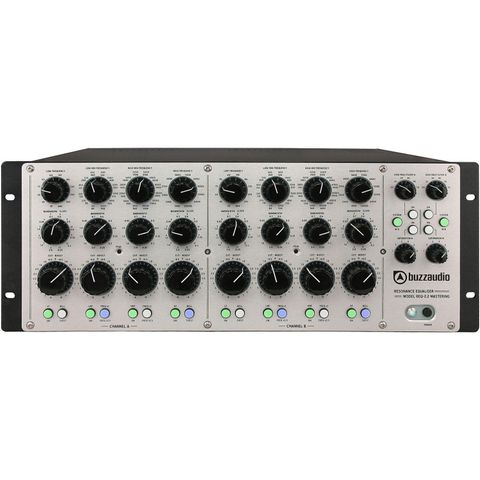

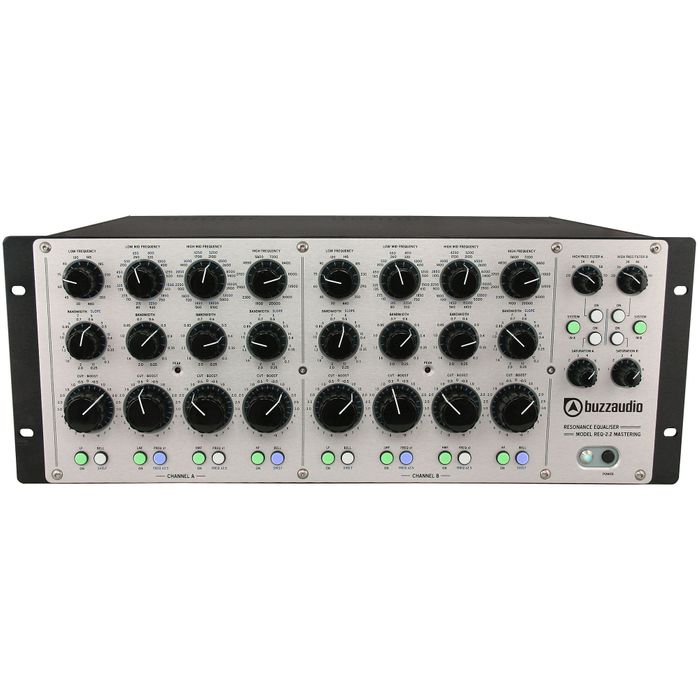

The REQ is available with a silver-grey or black face plate. There is an option to replace the the Choke based eq filter with an Active filter which provides a "tighter" bass sound. This option (the ALB) has come about from requests from some users who work with modern music styles in mastering. The only operational difference between the Active and Choke filters is that in Shelf mode, the Bandwidth control does not work as a slope control and is disabled.
You can also order the REQ with Lundahl output transformers. When fitted, the direct balanced line out is available on the LINE OUT 1 XLR connectors and the transformer coupled output on the LINE OUT 2 XLR connectors. There are two Lundahl options, the LL1517 audio C-core or the LL1684 amorphous core (expensive!).
