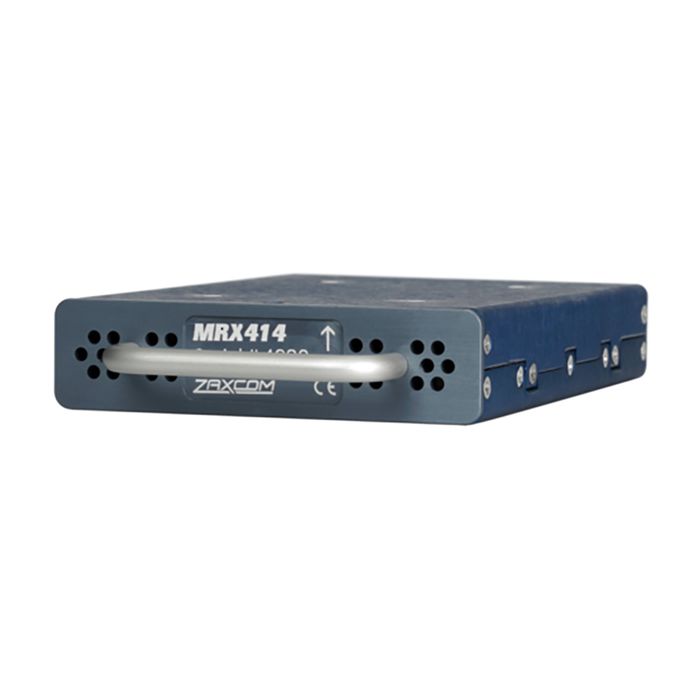

Zaxcom MRX414 4 Channel Slot-in Module Reciever
Description
MRX414 is a hot swappable module receiver designed for use in Zaxcom's Nova mixer / recorder, RX-4, RX-8, RX-12, and RX-12R.
CONNECTIVITY
MRX414 is a module style receiver compatible with the Nova mixer / recorder, RX-4, RX-8, RX-12, and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter within it’s host device to combat interference and extend range. The module is compatible with any Zaxcom digital recording wireless transmitter and with all current Zaxcom modulations (Mono, Stereo, XR and ZHD96).
CHANNEL COUNT
Let’s break down the name – M (module) RX (receiver) 4 (four transmitters) 1 (for no reason) 4 (up to 4 channels of audio).
RF PERFORMANCE
Part of Zaxcom’s 4th generation of digital wireless receiver technology the MRX414 sets a new standard for RF performance. The ultra-low noise floor (-135 dB) RF design will provide an ultra-long range. The MRX is almost impossible to overload. Close distance transmitters have virtually no effect on the reception of distant transmitters. The RF performance exceeds the previous generation of Zaxcom receivers by 5 dB while enhancing the rejection of interfering signals from things like walkie-talkies, cell phones, and HD Television transmission by 10 dB.
POWER
The MRX414 is an extremely efficient digital wireless receiver – the module draws 300 mA @ 13 VDC (150 mA per receiver).
FREQUENCY RANGE
The MRX414 can be ordered in one of three configurations:
MRX414-L – covers blocks 20 – 23 (512 – 614 MHz)
MRX414-M covers blocks 21ish – 25ish (550 – 660 MHz)
MRX414-H covers blocks 23 – 26 (596 – 698 MHz)
SPECIFICATIONS:
- Output
- Host Dependent
- Receiver
- MRX414-L Tuning Range: 512 – 614 MHz
- MRX414-M Tuning Range: 536 – 652 MHz
- MRX414-H Tuning Range: 596 – 698 MHz
- MRX414 Module
- Receivers Per Module: 4
- Receiver Modulation: Zaxcom Proprietary Digital
- Tuning Range: 512 – 698 MHz
- Power Consumption: 300 mA @ 13 VDC
- Size:13 x 8 x 20 cm (L x W x H)
- Weight: 7oz
