Radial Catapult 4-Channel Cat 5 Audio Snake Tx/Rx
Description
4-Channel Cat 5 Audio Snake
The Catapult is a passive audio snake that allows you to send four channels of analog audio over standard Cat 5 or Cat 6 Ethernet cable
Analog audio over Cat 5 wiring

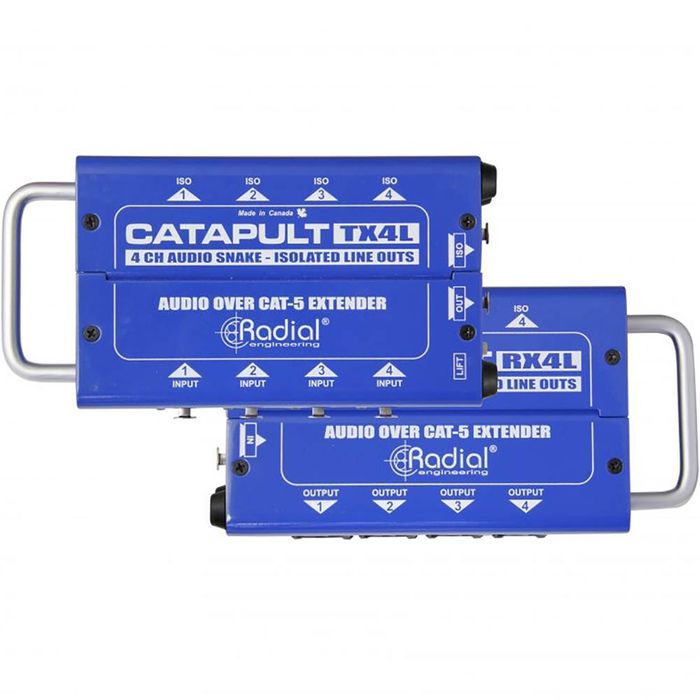

The Catapult TX4 and RX4 act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.
Straight-wire passive operation
Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.
Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.
Using the Catapult as a return snake
The Catapult is the perfect return snake for corporate events where you need to run a couple of lines back to the stage and monitors. Use the RX4L line isolation module to eliminate ground loops.
Using the Catapult as a 4-channel mic splitter

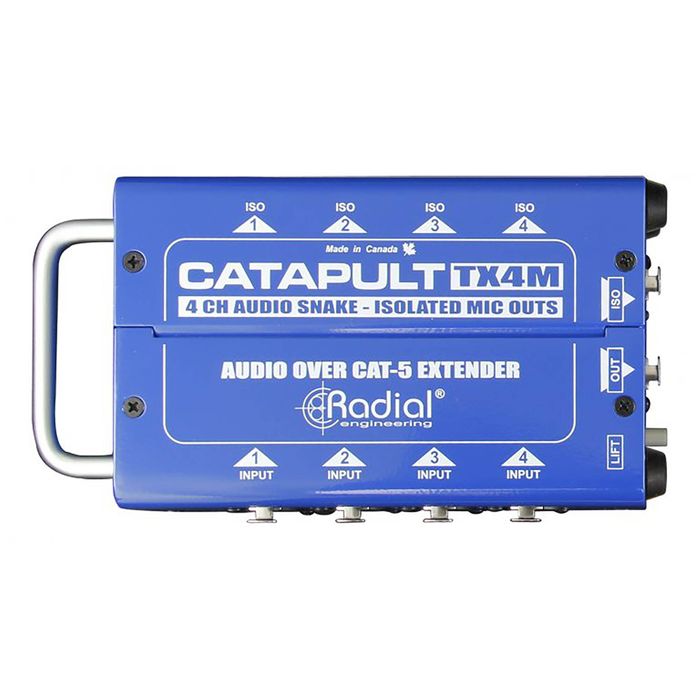

Use the Catapult TX4M to split the mics between the monitor desk and front of house with Eclipse transformer isolation to deliver a noise-free signal, saving hours of tedious trouble shooting.
Using the Catapult as a sub snake on stage
Cleaning up the stage while lowering the set-up times have become essential components in production. Use the Catapult at the front of the stage or next to the amps to create zones for quick deployment.
Using the Catapult as a line isolator
The Catapult RX4L is the perfect 4-channel line isolator. Simply connect it in line with any line audio device to eliminate hum and buzz caused by ground loops.
Using the Catapult to network audio
Use the pre-existing Cat 5 or Cat 6 wiring in the building to network audio from one room through the walls to another. The XLR connections at each end make it easy!
Run four AES signals across Cat 5 cable platform
110 Ohm AES signals can easily travel across Cat 5 and Cat 6 Ethernet cable. Connect to the four Catapult TX4 XLRs for eight channels of audio for remote recording.
