CB Electronics UR422-USB and SR422-USB - Universal RS422/USB Remote
POA
POA
Stock Code:
151002
Stock Code:
151003
Stock Level
Enquire for ETA
Enquire for ETA
Enquire for ETA
Description
UR422-USB AND SR422-USB - UNIVERSAL RS422/USB REMOTE
One USB Serial In/Out, One 9-pin outputs and One 9-pin In/Out, LTC Out, GPIO

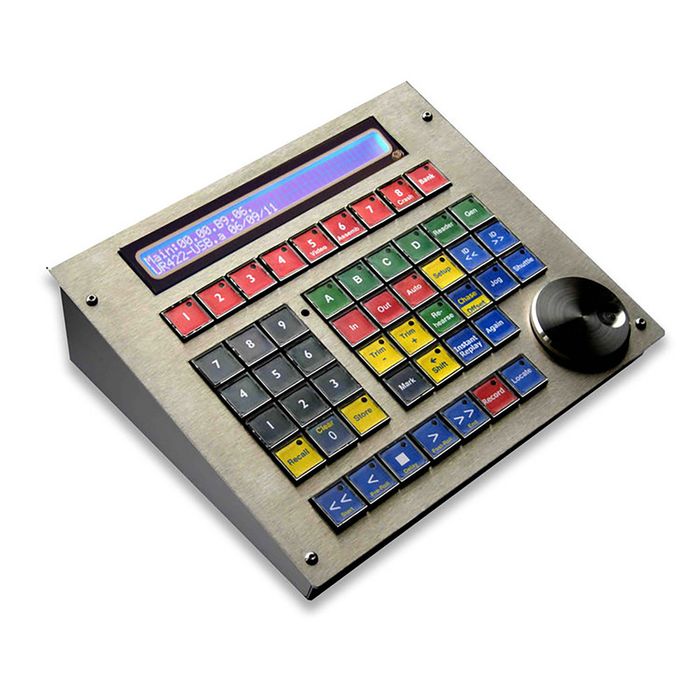

UR422-USB remote is designed as a small footprint low profile versatile remote control and incorporates the custom upgrades that were made to the original UR-422. The keyboard is user definable and may be configured to suit specific applications. The USB port provides the power and direct connection to a DAW or Video Workstation to provide track arming and a Jog/shuttle machine control interface. The machine control and track arming can be routed to separate ports allowing control of video playback whist recording on an separate audio recorder.
Key Features:
- Direct connection to Audio/Video Workstations via USB
- Sony P2, VDCP, and Odetics protocols with Clip select
- Optional T-Bar Control – Slow motion or Clip position
- Two RS-422 ports – Port A may be configured as input or output
- Precision weighted Jog Wheel with Shuttle, Jog or Step function
- Bi/Tri Level Video Sync Input – Frame accurate control
- LTC Timecode Output – Controlled Machine or Virtual Machine
- Plug & Play, Automatic Machines Recognition and Configure
- 32 cue points and 16 loops
- 8 GP Inputs or Outputs – Telecine, video switcher control
- Large Display 2 line by 40 character display
- 22 User Definable keys with LED's All keys are user definable via PC/Mac Program
- Key functions include Track Arm, Monitor, Edit, Locates, Loop's, Macro's
- Special CB Macro functions Instant Replay, Instant Forward, Again
- Field software update Software may be updated by user using PC or Mac with serial port
