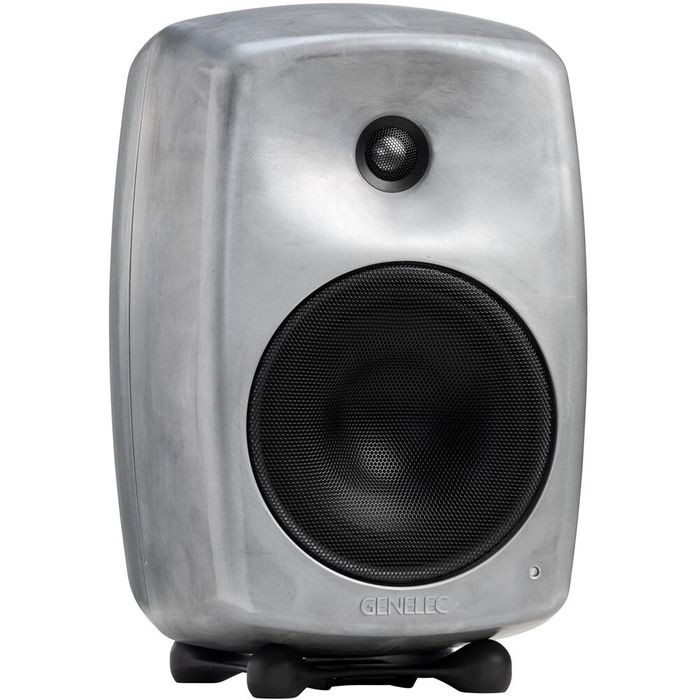

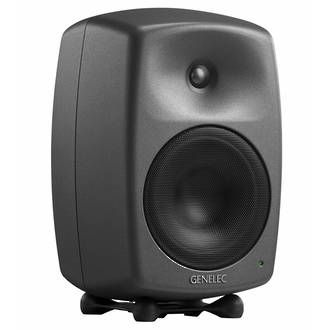

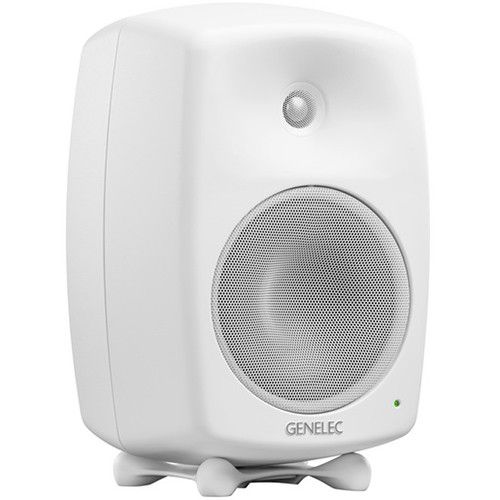

Genelec 8340A 6.5-in SAM Studio Monitor Multiple Colour
Description
The Genelec 8340A is a single SAM-Series, 2-way active studio monitor designed to provide accurate mix referencing with software control capabilities for audio engineers, musicians, and producers in project studios, small- to medium-sized control rooms, edit suites, or mobile setups. It features 300W of Class-D amplification driving a 6.5” woofer and 3/4” tweeter, producing a frequency response of 38 Hz to 22 kHz.
A proprietary waveguide enhances imaging, while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. XLR connectors are provided for the balanced analog input and AES/EBU digital input and output. Built-in signal overload protection enhances dependability and protects the speaker. Rear-panel room compensation controls include levels and high- and low-frequency adjustments. Detailed frequency adjustments and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software and the GLM User Kit (available separately). A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.
At the heart of the system is an acoustic design shaped by decades of innovation and expertise. Capable of supporting extremely high sound pressure levels, the 8340A features a reflex port design for low-frequency enhancement, plus the colour-free accuracy of the Minimum Diffraction Enclosure (MDE™), and on- and off-axis precision thanks to the Directivity Control Waveguide (DCW™). All this is coupled to the versatility of SAM. Genelec Loudspeaker Manager (GLM™) 2.0 software allows for the fine adjustment of all monitor settings, while AutoCal™ compensates for detrimental room influences to perfectly calibrate your set-up for your listening environment, no matter if you work in simple stereo or ambitious immersive audio.
The 8340A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with select K&M mounts and various wall/ceiling brackets.
Key Features:
- Smart Active Monitor (SAM™) Systems
- Directivity Control Waveguide (DCW™) Technology
- Minimum Diffraction Enclosure (MDE™) Technology
- Reflex Port Design
