Blackmagic ATEM 1 M/E Advanced Panel 10
Description

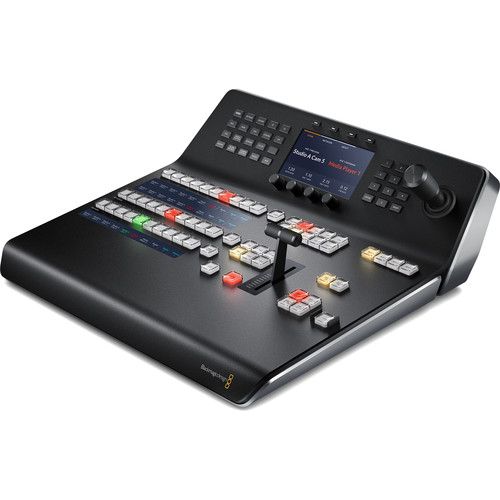

The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
At the rear of the unit are dual Ethernet connections, a USB-C port for firmware updates, and power inputs. Use the IEC input for connecting to mains power, and the 4-pin XLR 12V input for DC power supplies. The panel's chassis is sized small enough to fit in a standard equipment rack, allowing it to be implemented in broadcast trucks and fly-away kits.
Key Features:
- Direct Cross Points: 10
- Shifted Cross Points: 20
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 3 rows 24 character LCD
- On-Air indicator: 4
- Power Status Indicators: None
- DSK Transition Selectors: Auto, Cut, Tie/Preview.
- Preview Transition: 1
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 3
- Menu Control: 20 buttons
- Dedicated Macro Buttons: 10
- Multi Control Buttons: None
- Destination Bus: 1
- Source Select Bus: 1
- Fader Bar: 1
- 3 Axis Joystick: 1
- Numeric Keypad: 1
