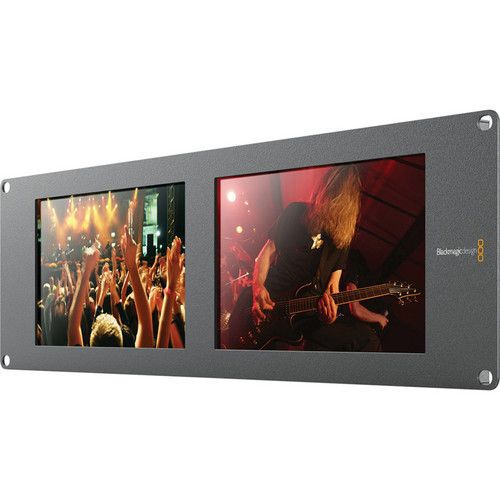

Blackmagic SmartView Duo 2 Rackmountable Dual 8-inch LCD Monitors
Description
Blackmagic Design's SmartView Duo comprises a pair of side-by-side 8" LCD monitors – both with an auto-selecting 3G/HD/SD-SDI input – that are housed in a 3 RU-high, rackmountable form factor. Ideal for live broadcast and mobile video production, the slim SmartView Duo features integrated tally (input via a standard 9-pin D connector) that clearly shows video status by displaying a red, green, or blue ring that borders the screen in question.
The 800 x 480-resolution displays' auto-switching SDI inputs accept an extremely wide range of digital signals, from standard-def 525i and 625i to full progressive high-definition 1080p60 and several flavors of 2K-resolution video. There's a loop-out BNC for both inputs, with re-clocking of the signal. For screen configuration and settings, plus firmware updates, the SmartView Duo has both USB 2.0 and Ethernet inputs.
For the SmartView Duo, a sleek design pays practical dividends. The thinness of the dual-display panel (less than 1") means it's easier to install, transport, and ship. The lack of mechanical controls on the panel itself takes inadvertent adjustments out of the equation. The auto-image-flip feature means that the displays can be rotated upside down so you can achieve the best viewing angle.
Perfect for Live Production
SmartView Duo is perfectly designed for building a video wall for monitoring all sources going into live production switchers. Because it's so incredibly thin, it's also perfect for portable setups where you need to save space. Imagine having all your video sources displayed on large 8" LCD screens so you can see camera focus and quality. Now you can build full live broadcast presentation monitoring that's small enough to be fully portable. SmartView Duo is lightweight and thin, so it's perfect for outside broadcast vans – or even installed into portable monitor racks to reduce the shipping costs of flyaway kits
Monitor Everywhere
Good-quality SDI monitoring is expensive and often makes it hard to put monitoring on all the devices in your racks or control rooms because costs add up quickly. SmartView Duo eliminates this problem and includes two large, beautiful 8" displays in a compact 3-rack-unit size. You get full loop-through SDI connections and an Ethernet network connection for setup. SmartView Duo includes easy-to-use software for Mac and Windows, so you can see all the monitors on your network for remote adjustments. That's perfect when you want to color-match all screens in a video wall remotely from your laptop.
Wide SDI Compatibility
SmartView Duo is designed to be used for broadcast as well as post-production, so it includes support for more SDI video standards, including SD, HD, and 3 Gb/s SDI formats. SmartView Duo allows firmware updating, making it easy to upgrade to new SDI video formats when they are invented. (Updates are free from the Blackmagic Design website.) SmartView Duo includes new advanced video standards used in post-production, including 1080-line progressive HD rates and even 2K formats over 3 Gb/s SDI video. All video formats can be connected and changed, because SmartView Duo simply switches in less than a second to the new format.
Key Features:
- 3G/HD/SD-SDI Inputs, Both with Loop-Out
- Integrated Tally for Live Broadcast
- Ethernet Input for Adjustments
- Upgradeable Firmware via USB
- 2K, 1080i/p, 720p & 50/60 Hz SD Support
- 10-Bit Color & 4:2:2 / 4:4:4 Sampling
- 800 x 480 Resolution
What's Included?
• Blackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors
• 12V Universal Power Supply
