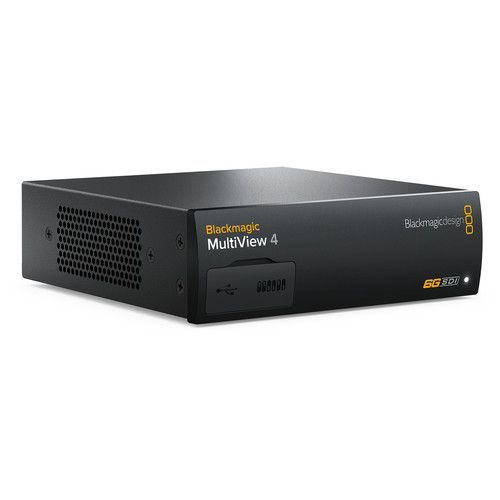

Blackmagic MultiView 4
Description
The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity. The MultiView 4 allows for 2x2 display with each input fully re-synchronized. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.
Housed in a 1 RU machined aluminum frame, the MultiView 4 is ready for use in the studio, broadcast truck, or even on location. It can be controlled with the included control software via the Ethernet port or by an optional Teranex front panel (not included). For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240 VAC, or you can power the unit by 48 VDC PoE+.
Key Features:
• 4x 6G-SDI Inputs with Loop Outputs
• 1x SDI & 1x HDMI MultiView Outputs
• Supports SD, HD, UHD 4K, DCI 4K
• Independent Inputs Allow Mixing Formats
What's Included?
• Blackmagic Design MultiView 4
• SD Card with Software and Manual
