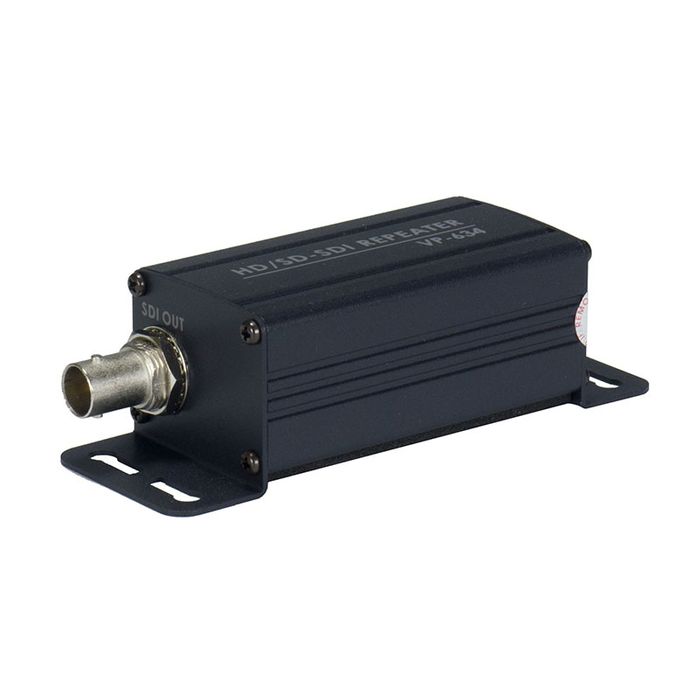

Datavideo VP-634 100m SDI Repeater (Unpowered)

Price:
$670.00 (excl. GST)
Stock Code:
142979
Enquire for ETA

Description

The Datavideo VP-634 3G/HD/SD-SDI Repeater is a non-powered complement to the optional VP-633. Both extend an SDI video signal along with embedded audio 100m. Both re-clock to maintain signal quality. And both support resolutions up to 1080p/60 NTSC or 1080p/50 PAL, automatically detecting whether the input is NTSC or PAL. The 633, however, is DC-powered and meant only to serve as the initial extension unit, the first link in the extension chain. The 634 only joins at the end of the first 100m and thereafter every 100m. The initial unit -- the 633 -- will feed power to as many 634 units as you connect.

You can confidently connect up to eight in addition to the 633, for a total extension of almost 950m.

Key Features:

• Carries SDI Signal with Audio 328 ft
• Complement to Optional DC-Powered VP-633
• Supports 1080p/60 NTSC and 1080p/50 PAL
• Multiple Can be Connected
