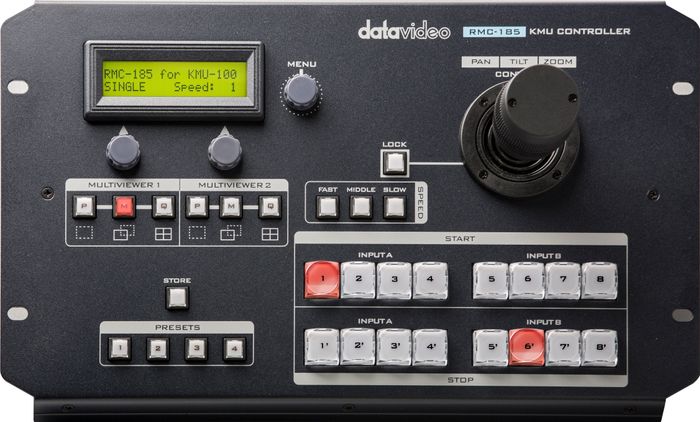

Datavideo RMC-185 KMU Controller
Description
The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.
The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.
4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.
Key Features:
• Dedicated control surface for KMU-100
• Provides easy and intuitive control of the KMU-100
• Easily pan, tilt and zoom to create the user defined windows on the 4K signal
• Switch between live and preview inputs
• LCD display showing setup menu options
