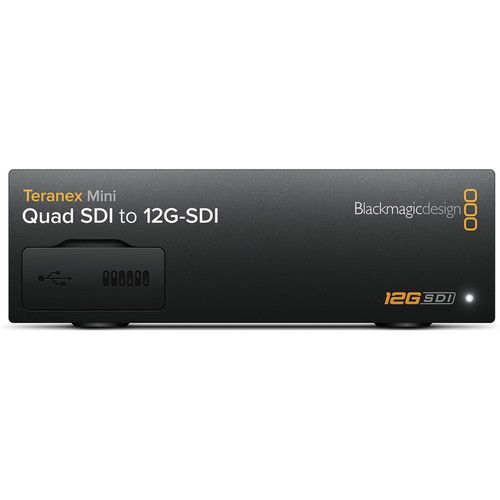

Blackmagic Teranex Mini Quad SDI to SDI 12G Converter
Description
Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap.
Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.
Key Features:
• Quad-Link 12G-SDI Input
• 2 Single-Link 12G-SDI Outputs
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Automatic Input Signal Detection
