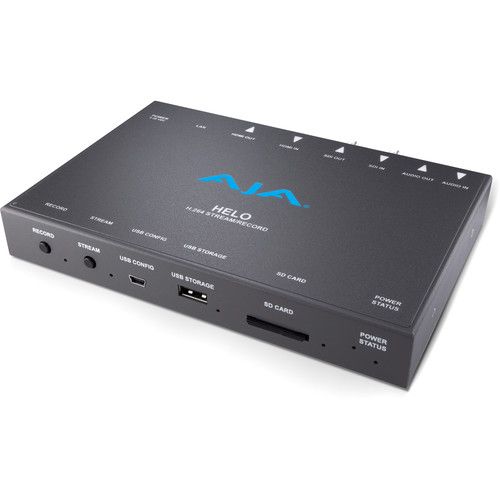

AJA HELO H.264 Streamer & Recorder
Description
HELO is AJA’s powerful H.264 streaming and recording stand-alone appliance. HELO brings both SDI and HDMI I/O into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record beautiful H.264 files to either SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based storage simultaneously.
Portable and Ready-to-Use
• With a small and robust form factor, HELO Recorder can be used in live events, webcasts, production and locations
• Designed for continuous use to deliver with full connectivity
• Offers both HD-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in H.264
• Streams out to your Content Delivery Network (CDN) and records to SD card, USB storage, or network-based storage simultaneously
Encode
• Encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files from tablets to smartphones, desktops to smart TVs
• 2-channel stereo audio can be encoded at up to 24-bit 48 kHz at data rates ranging from 32 KB/s to 256 KB/s in MPEG-4-LC, allowing you to make an appropriate choice for your project's needs
Stream
• USB connection and robust web-browser based UI allows you to setup and configure your CDN connection
• The stream button delivers your project across the recorder’s Ethernet connection, which allows support for RTP/RTSP, RTMP as well as Unicast
Record
• Offers a dedicated record button right on the front of the recorder’s small and mobile interface for immediate recording
• You can simply plug in your NTFS 3.1 or FAT 32 formatted USB drive, SD card, or connected network storage and start recording immediately
Mass Media
• H.264-based encoding not only ensures efficiently sized files, it also means you have multiple recording medium options
• Utilizes USB thumb sticks, drives and RAIDs, common SD or SDHC media or network sharing across a switch
Built-In Webserver
• AJA eMini-Setup and recorder’s easy-to-use web-browser interface make it simple to setup, configure, and update firmware
• You can connect to the recorder either via its direct USB port to set static/dynamic IP addresses through AJA eMini-Setup software or over the network using the web server generated UI
Multiple Choices
• For Ki Pro or CION Users, the HELO Recorder expands your HD pipeline with up to 1080p60 support
• You can connect via 3G-SDI or HDMI and record H.264 proxy files for fast onsite portable editing on a laptop and stream your live capture or playback as needed
Key Features:
• Portable, stand-alone 3G-SDI and HDMI source inputs
• Encode up to 1080p 60 in H.264/MPEG-4
• 2-Channel stereo audio encoded up to 24-bit 48kHz
• Data rates from 32kbps to 256kbps in MPEG-4
• Record to SD, SDHC or SDXC cards, USB storage, NFS, CIFS, or SMB
• USB Slot and SD card slot
• Video input and output 3G-SDI, SMPTE-259/292/296/424, 10-bit, Single Link 4:2:2, 4:4:4, BNC and HDMI
• Support for RTP/RTSP, RTMP, RTMPs, HLS, and Unicast
• AV Mute with user graphics upload support for pre-live feeds
• Error logging for quick analysis of streaming issues
• WebUI Regionalization for Chinese, Japanese and Korean
• Web based GUI preview window
What's Included?
• AJA HELO H.264 Streamer & Recorder
• Limited 5-Year Warranty
