Aviom D-800-Dante A-Net Distributor with A-Net Bridge Input
Description

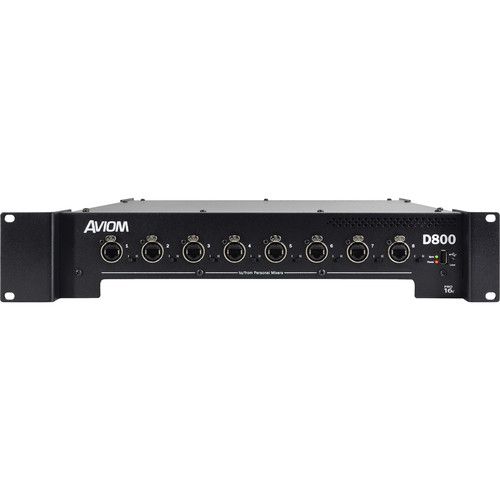

The Aviom D-800-Dante A-Net Distributor with A-Net Bridge Input is a 2RU rackmountable device designed to deliver power and audio to up to eight Aviom personal mixers such as the A-16II, A-16R, and A360. This version features a rear panel mounted Dante interface card that supports up to 64 channels of Dante network audio. This allows the unit to connect to a Dante-enabled console such as the Yamaha CL series console with Rio I/O racks.
The unit features one Pro16e A-Net in that supports an A-Net Bridge input from up to four synchronous Pro16 A-Net streams. It also features Network Mix Back functionality for streamlining the connections to IEM wireless transmitters as well as Ethernet port for iOS device control (iPad, iPhone, iPod Touch) using an attached Wi-Fi router. The back panel includes one Pro16e A-Net Output for thru connections to additional units. All of the audio connections utilize heavy-duty locking connectors to ensure reliability.
Supports up to 64 channels of Dante network audio to a Dante enabled digital console such as the Yamaha CL with Rio I/O racks
Using SB4 System Bridge and Pro 16 A-Net console cards, combines up to four synchronous Pro16 A-Net streams to send 64 channels of digital audio from digital console to A360 personal mixers with individually selected control on each mixer
Supports switchable bi-directional data flow to A360 mixers and unidirectional data flow to A-16II Personal mixers
Takes the stereo mix output from each connected A360 to create a 16-channel A-Net digital stream. These stereo mixes can then be connected to the musician's wireless in-ear monitor transmitters
Connects to a standard Wi-Fi router to extend user interface of A360 to iOS device touchscreen
Key Features:
- Connect to a Dante Audio Network
- Up to 64 Dante Network Channels
- Distributes Power and Audio
- Up to Eight A-16II, A-16R, A360 Mixers
- Network Mix Back for IEM Transmitters
- Support for iOS Control Over Wi-Fi
- 1x Pro 16e A-Net Out for Thru Connection
- Heavy Duty Locking Audio Connectors
What's Included?
• Aviom D-800-Dante A-Net Distributor with A-Net Bridge Input
• Power Cord
