AMS Neve 1073N Microphone Preamp/EQ
Description
Your favorite preamp just got even better. Equipped with an integrated DI input, expanded I/O connectors, phantom power and an external PSU, the Neve 1073N is a fully functional standalone preamp with 3-band EQ that combines classic tone of the original 1073 with unrivaled versatility and portability.

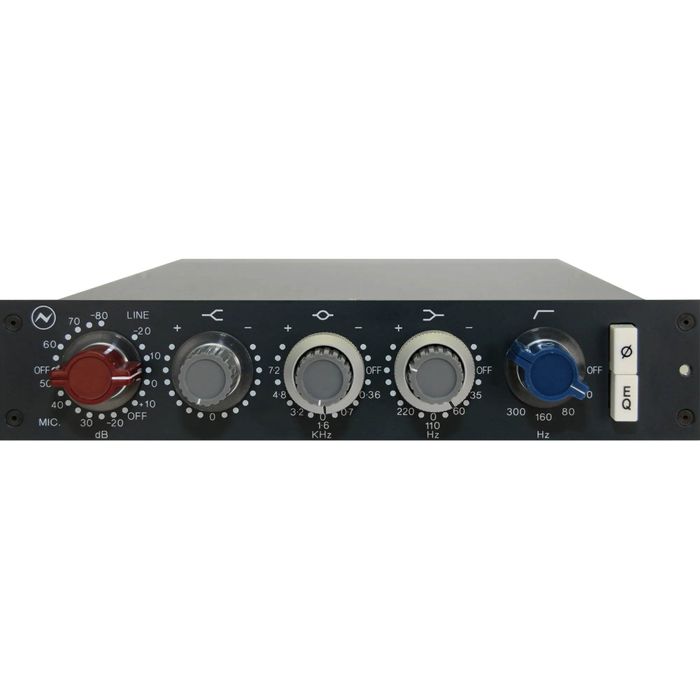

From the front, the Neve 1073N looks identical to the classic 1073 design you know and love. With the same iconic red, grey and blue knobs, the same settings, and the exact same sound as the original, it can be hard to distinguish the new 1073N from a vintage model from the front.
But from the rear, the 1073N looks like an entirely new device. A combo jack on the right hand side of the unit allows you to directly connect of microphones, instruments and more. An integrated DI input makes connecting guitars a breeze. Controls for phantom power, a built-in 20 dB pad and more make it easy to dial in the perfect sound for any recording. Quickly connect to your favorite studio gear using the dedicated XLR line output.
The Neve 1073N comes bundles with a dedicated external power supply unit, making it a complete standalone solution for capturing studio-grade recordings anywhere you go. The 107N is also equipped with the original console and rack, enabling you to easily interface with external rack units and consoles for even more flexibility.
The Neve 1073N features an all Class A preamp design with three bands of EQ. The high shelf EQ is fixed at 12 kHz, and ideal for bringing acoustic recordings to life with a silky-smooth brilliance. The midband is perfect for carving out space in busy mixes and adding warmth to instruments with fixed frequencies at 360 Hz, 700 Hz, 1.6 kHz, 3.2 kHZ, 4.8 kHz and 7.2 kHz. The low band is perfect for fattening up tracks with tight, punchy lows using fixed frequencies at 35 Hz, 60 Hz, 110 Hz, and 220 Hz. Clean up your low end with a dedicated high-pass filter, selectable at 50 Hz, 80 Hz, 160 Hz and 300 Hz.
Key Features:
- Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power
- Exclusive Neve® Marinair™ transformers used on input and output stages
- 3 EQ bands & HP filter
- Can be used as a standalone module or inserted into a compatible rack or console
- Mic & Line inputs are transformer balanced and earth free
- Microphone Input: Gain +80db to +20dB in 5dB steps
- Designed and built in England
- Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps
- DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps
- Output: Maximum output is >+26dBu into 600O
- Output is transformer balanced and earth free
- Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output
- (80kHz bandwidth) into 600O
- Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out
