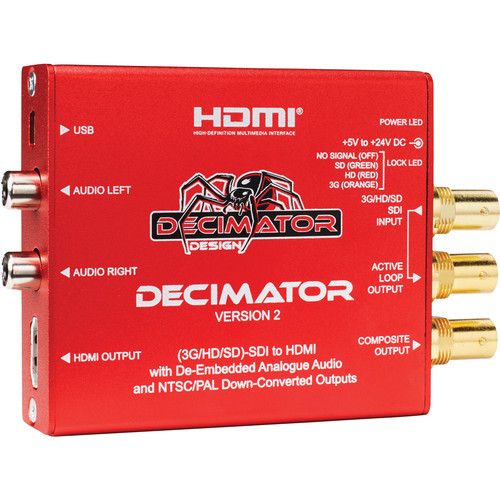

DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter
Description
Delivering more than just a basic SDI to HDMI converter, the DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs from DECIMATOR provides you with a host of features in a small package suitable for location or a studio environment. The device auto detects the incoming signal, and handles signal switching based on the DIP switch settings you select. The converter maintains a 10-bit data path for your video signal, which minimizes scaling artifacts. It incorporates one SDI input that supports signals up to 3G-SDI, and features a loop through SDI output, HDMI output for the converted signal, and a composite out that automatically scales HD signals delivering either NTSC or PAL video.
The unit passes closed captioning signals on the composite output, a useful feature for a broadcast facility. The HDMI output can display selectable frame markers or "Graticules" as well as up to 16 channels of audio meters. The unit also de-embeds the audio from the SDI stream, and makes it available as 2 channels of analog audio. External DIP switches allow you to select how the unit handles conversion to HDMI and SD video from SDI, and which stereo pair is available on the analog audio outputs. The converter features a locking DC power socket and a mounting bracket allowing you to attach it to a wall or possibly the back of a monitor.
Key Features:
• Autodetect & Signal Switching
• 10-Bit Data Path
• SDI Loop Through, HDMI & Composite Out
• Selectable Down Converted NTSC/PAL Out
• Passes Closed Captions to Composite Out
• Adjustable Frame Markers on HDMI Output
• 16-Channel Audio Meter Display on HDMI
• 2-Channel De-Embedded Analog Audio
• External DIP Switch Configuration
• Locking DC Power Socket
What's Included?
• DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs
• Universal Power Supply
• HDMI Cable
• USB Cable
• Mounting Bracket
• Limited 3-Year Warranty
