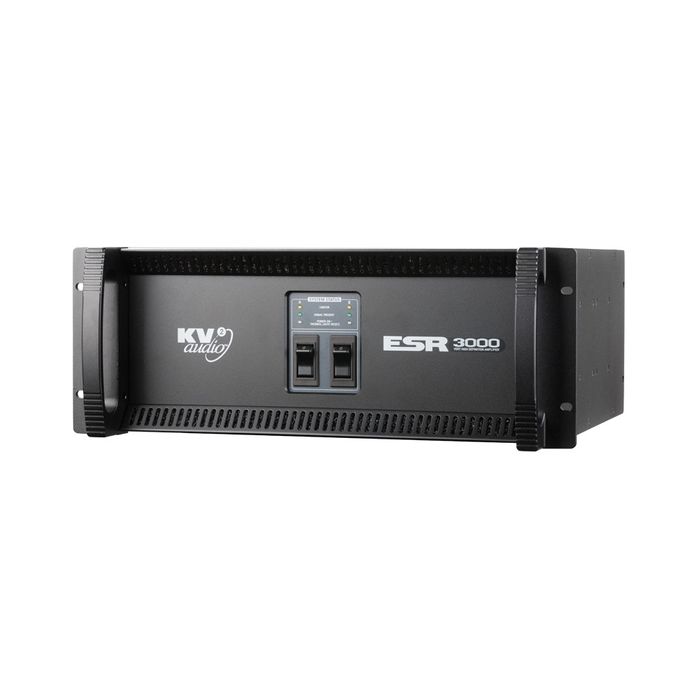

KV2 Audio ESR3000MkII Amplifier - Rack mounted
Description
The ESR3000MkII is three-way, active control and amplification system specially designed for the KV2 Audio ESR full range series loudspeaker systems. It houses all signal processing and amplification, as well as providing control and crossover function an external subwoofer cabinet if needed utilizing an external amplifier. The ESR3000MkII powers the ESR215MkII. Each unit incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifier for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design for mids and two a 1000-watt, high-efficiency, current- enhancing switch mode technology amplifier for bass. The ESR3000MkII stereo configuration powers two ESR cabinets accordingly.
Key Features:
The amplifier compliment inside the ESR3000MkII Amplifier is as follows:
• High Frequency - 2x 100-watt, Class AB, push pull, low intermodulation design
• Mid Frequency - 2x 200-watt, Class AB, push pull, low intermodulation design
• Low Frequency - 2x 1000-watt, high-efficiency, current-enhancing switch mode
Applications: Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues
• Fixed Installations
• Music venues
• Classical and opera concerts
