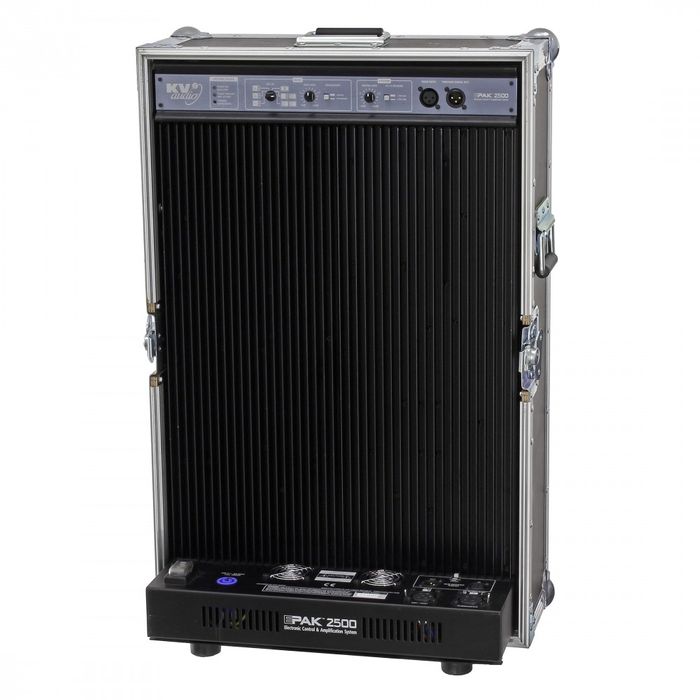

KV2 Audio EPAK2500 - Control of Your ES System
Description
The EPAK2500 is a four-way, active control and amplification unit specifically designed for the ES Series modular loudspeaker system. It not only houses all signal processing and four individual amplifiers but also controls the allocation of power depending on the number of bass modules employed. The EPAK2500 is enclosed in a road-rugged case with side handles and a built in cable storage compartment. Easily transported on a trolley this unique amplification system has its electronics mounted on an independent suspension system that isolates it from the shocks and impacts typically encountered on the road. A large aluminum heat sink provides passive cooling along with two demand-sensitive fans for added reliability.
Key Features:
• 4-way modular, 2500W Control and Amplification system for use specifically with ES Series modules
• High Frequency, 100W, Class AB, push-pull, low intermodulation amplifier with transformer balanced outputs
• Mid Frequency, 200W, Class AB, push-pull, low intermodulation amplifier with transformer balanced outputs
• Mid Bass, 600W, high efficiency, current enhancing, switching amplifier Subwoofer, 1600W, high efficiency, current enhancing, switching amplifier
• Complete on board speaker management system including equalization, time alignment, crossover filters, amplifier overdrive protection, system set-up and output level controls
• 20MHz sampling for on board time alignment and phase correction
• AC soft start circuitry with ON/OFF AC breaker switch provides thorough power protection
• Passive heat dissipation design with demand-sensitive forced cooling back-up system
• Set-up provides selection and control of different subwoofer combinations
• Professional enclosure using road-rugged case with side handles
• Removable front cover provides storage of all AC and speaker cables
• Bass Character- Attack or extension switch alters the low frequency character
• Includes all speaker cables for a single stack ES system - CABLE-KIT
Applications: Specifically designed as the amplification and control elements for ES loudspeaker systems
• Portable PA
• Fixed Installations
• Bars and Nightclubs
• Houses of worship
