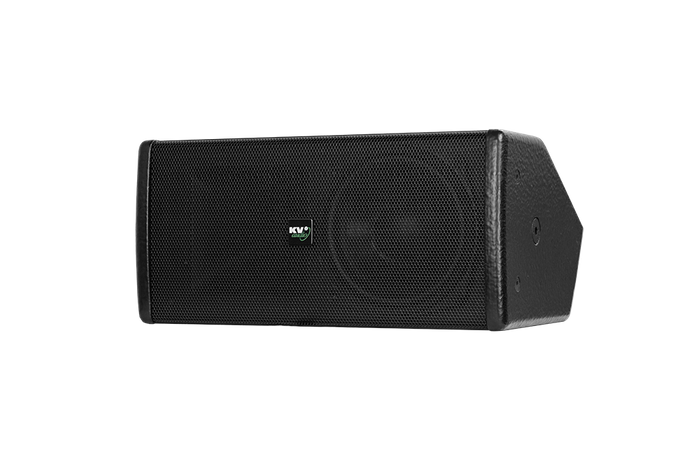

KV2 Audio ESD5 - 2-Way Passive Speaker
Description
The ESD5 is a very high quality 2-way full-range compact low profile passive loudspeaker with performance that defies its size. Delivering exceptional clarity for speech and program reproduction, the ESD5 is perfect for discreet installations and audio visual presentations where sound quality is paramount, but aesthetic dimensions are of equal importance. The ESD5’s high impedance capability means that up to sixteen units can be run from a single suitable quality stereo amplifier, to provide a high fidelity background program throughout a venue.
Key Features:
• Professional, Baltic birch construction with wear resistant polymer coating
• 115dB sustained output, 118dB peak with very high dynamic range
• Compact cabinet design allows for use as front fill, in-fill or under balcony applications
• Wide dispersion 90° H x 90° V horn
• Revolutionary new passive delay line
• 1 1/3" (34,4 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and ferrite magnetic motor structure
• 5" woofer with Low Inductance Lightweight voice coil technology and motor structure dramatically increases force and lowers distortion
• Proprietary design for simplified mounting integrates two M10 suspension points
• Ceiling Mount Bracket (KVV 987 344) is included with the product.
Applications: Specifically designed as a super- discreet passive loudspeaker for reproduction of recorded music and speech
• Suitable in fixed installations as a full range speaker or as a system with accompanying subwoofers
• Excellent peripheral reinforcement for main KV2 systems
• Fill-in speaker
• Monitoring
• Ceiling or under balcony mounting
