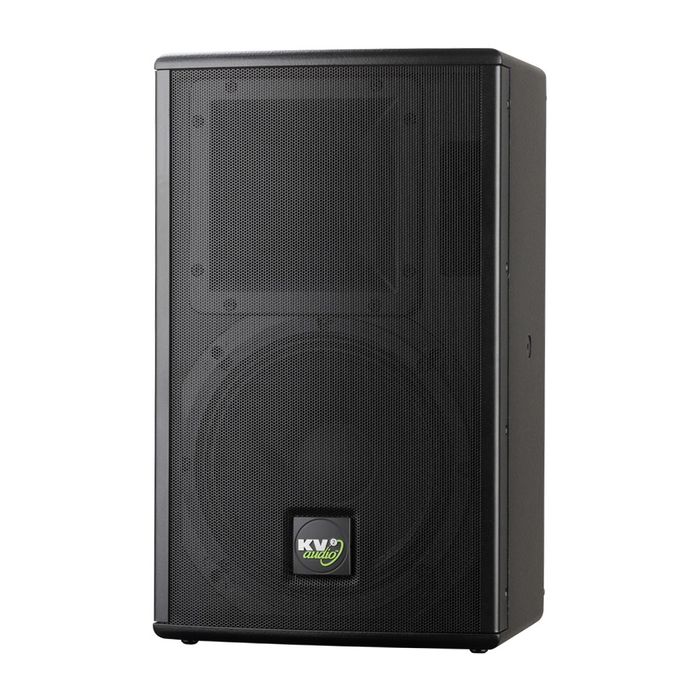

KV2 Audio ESD10 - The Ultimate Compact Passive System
Description
The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10" trans-coil woofer and a wide dispersion rotatable horn. The ESD10 provides a smooth hi fidelity response and delivers sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as an fill-in for larger systems. The ESD10 is an all round affordable passive solution that simply exudes quality.
Key Features:
• Professional, Baltic birch construction with wear resistant polymer coating
• 125dB sustained output, 128dB peak with very high dynamic range
• Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications
• Rotatable wide dispersion 100° H x 80° V horn
• Revolutionary new passive delay line
• 1.75" (44 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
• "10" woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased linear frequency response
• Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
• Additional side and bottom M10 points for flexible bracket, rigging and installation options
• "Top-hat" pole mount fitted at the base of the cabinet
Applications: Specifically designed as a passive loudspeaker for high quality, high output portable music playback and live performance in small areas
• Full range stand-alone solution or scalable to larger systems with subwoofers
• Large conference and small to medium performance venues
• Multi-purpose fixed installations
• Personal monitoring
• In-fill for larger main KV2 Audio systems or third party systems
