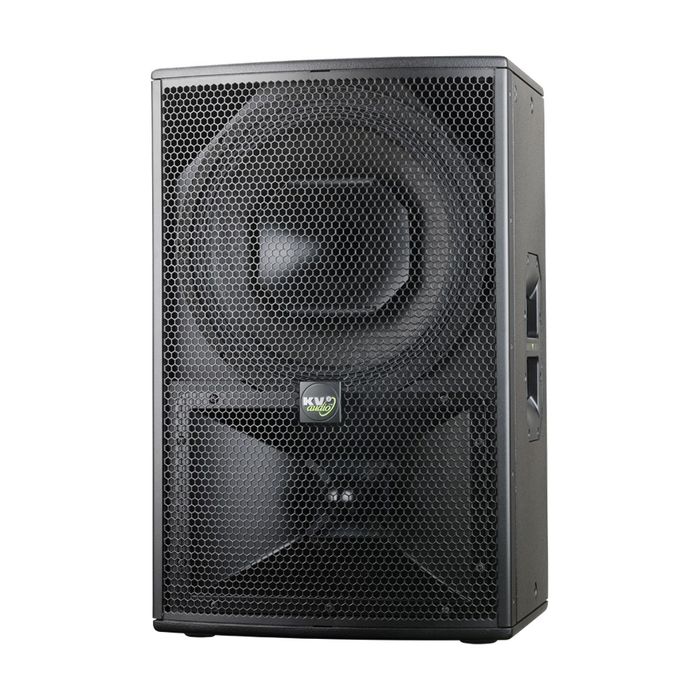

KV2 Audio ESD15 - 3-Way Passive Speaker

POA
Stock Code:
111599
Enquire for ETA

Description

The new ESD15 incorporates a unique coaxial 15" transducer with a 1.75" Nitride Titanium Neodymium Compression Driver on a wide dispersion 80 x 60 degree horn. Whilst most coaxial speakers will try to cover the full frequency response, the ESD15’s coaxial driver only covers bass and highs leaving the all important mid-range to a 6" neodymium speaker mounted on a large 80 x 60 degree horn. This resolves the issue of the 15" driver trying and failing to reproduce mid-range, a common problem with conventional coaxial designs. The ESD15’s unique design provides extremely flat, full range reproduction from a compact yet powerful package that out performs speakers twice its size, weight and price.

Key Features:

• Professional, Baltic birch construction with wear resistant polymer coating
• 126dB full range sustained output with very high dynamic range
• Compact cabinet design, 3-way design in the typical dimension of a 2-way
• Wide dispersion 80° H x 60° V horn
• Revolutionary passive 3-way design, featuring built-in crossover and delay line
• State of the art 15" coaxial woofer with neodymium magnetic motor structure
• 1" throat exit (1.75" compression driver) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
• 6" horn loaded midrange with 80° H x 60° V dispersion
• Proprietary top handle design for simplified handling and carrying and two side handles integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
• Additional side and bottom M10 points for flexible rigging and installation options
• "Top-hat" for pole mounting applications

Applications: Specifically designed as a true full-range, passive loudspeaker for high quality, high output portable music playback and live performance in small areas

• High quality fixed installations without subwoofer
• Small live performances
• Church installations
• Conferences
• Video/film presentation
