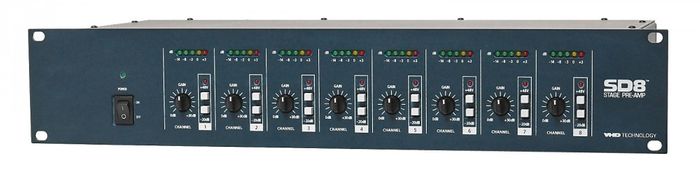

KV2 Audio SD8 - Stage Driver, 8 Channel
Description
The VHD SD8 is an eight-channel stage preamp designed with individual line drivers that maintain audio signal integrity over long cable lengths. As cable lengths increase, the length of the cable creates a high capacitance load that most microphones have difficulty in driving. The SD8 features eight independent mic inputs with gain control adjustment, -20 dB pad and 48V phantom power. Each input has two outputs allowing signal routing to two separate locations such as front of house and monitoring consoles. A five bar LED display provides signal level information and a rotary knob provides 0db to +30 dB of gain control.
Key Features:
• 2U 19" rack eight channel stage preamp with line drivers
• Eight individual microphone or line inputs with gain controls and pads
• Phantom power available on each channel
• Sixteen individual 50 ohm outputs (two per input)
Applications: Specifically designed as part of the VHD system as a multi-channel stage preamplifier Line driver to maintain signal integrity between the stage Microphone instrument inputs and mixer over long distances
• Live music and performance
• Fixed installations
• Can be used with any Audio system for improved results
