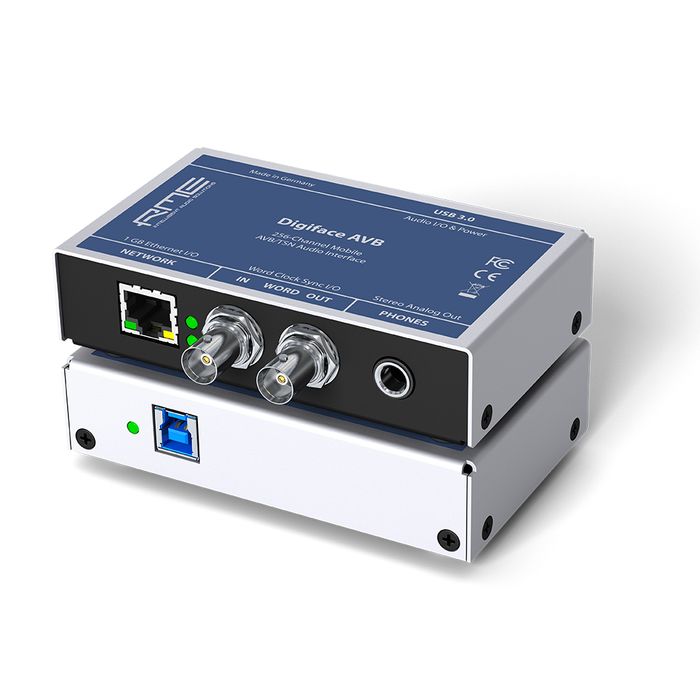

RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface
Description
Expand your audio network's channel count with the RME Digiface AVB, a 256-channel mobile AVB/USB audio interface designed to streamline the transfer of digital audio between your Mac or Windows computer and an AVB network. Ideal for broadcast, theatre, and large-scale concert production, the Digiface AVB supports resolutions up to 24-bit / 192 kHz, and a maximum of 128 channels in and out.
Hookup is simple; just plug the RJ45 Gigabit Ethernet port into your AVB network, then connect the USB 3.1 Gen 1 port to your host computer. Utilize the BNC wordclock I/O for proper synchronization with other digital audio devices such as mixers or a master clock. A 1/4" TRS line/headphone output allows convenient monitoring of an independent submix for easy assessment of signal quality.The USB-powered Digiface AVB includes a powerful software bundle offering comprehensive mixing, control room functions, remote control, measurement, analysis, and more.
The Interface comes with RME's unique software tool box for metering, testing, measuring and analyzing digital audio streams. On Mac OS X provides unique functions and features of the spectral analysis of the data calculated in hardware level right through to sophisticated multi-channel level meter. On Windows, an additional multi-track recorder and the display of playback data from an audio software are also available.
Key Features:
• Transfer Audio Between USB & AVB Network
• Up to 128 Channels of I/O
• Up to 24-Bit / 192 kHz Resolution
• 1/4" TRS Line/Headphone Output
• RJ45 GbE Port
• USB 3.1 Gen 1 Host Port
• BNC Wordclock I/O
• Includes Mixing & Control Software
• Includes Measurement & Analysis Software
• Mac & Windows Compatible
What's Included?
• RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface
• 6' USB 3.1 Gen 1 Cable
• RME Driver CD
• Limited 2-Year Warranty
