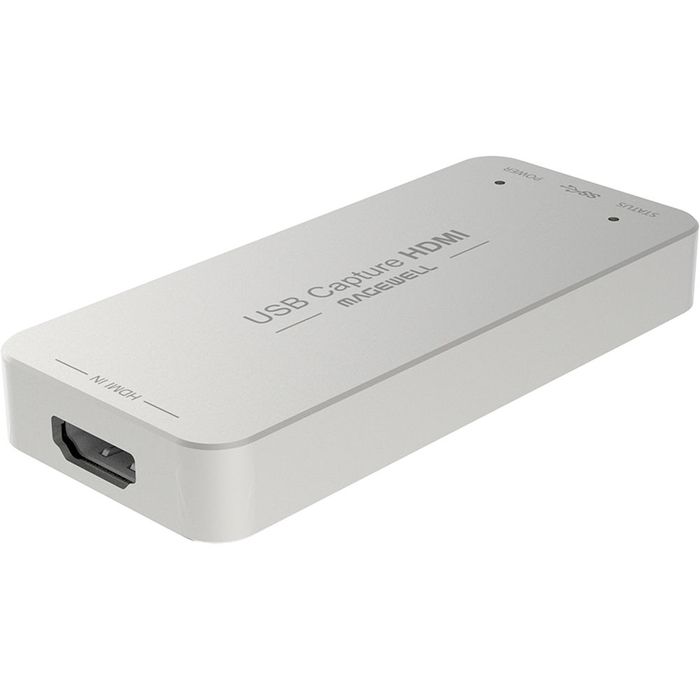

Magewell USB Capture HDMI Gen 2
Description
Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.
Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
- No drivers needed for Windows, Mac, or Linux
- Automatically determines input video format and converts it to the specified output size and frame rate
- Automatically converts input audio formats to 48 kHz PCM stereo audio
- 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied
Key Features:
- Supports up to 1920 x 1200p60 Resolution
- Hardware Scaling and Deinterlacing
- Performs Frame Rate Conversion
- Plug-and-Play Using Existing Drivers
- Backward Compatible with USB 2.0
- Onboard RAM for Stream Buffering
