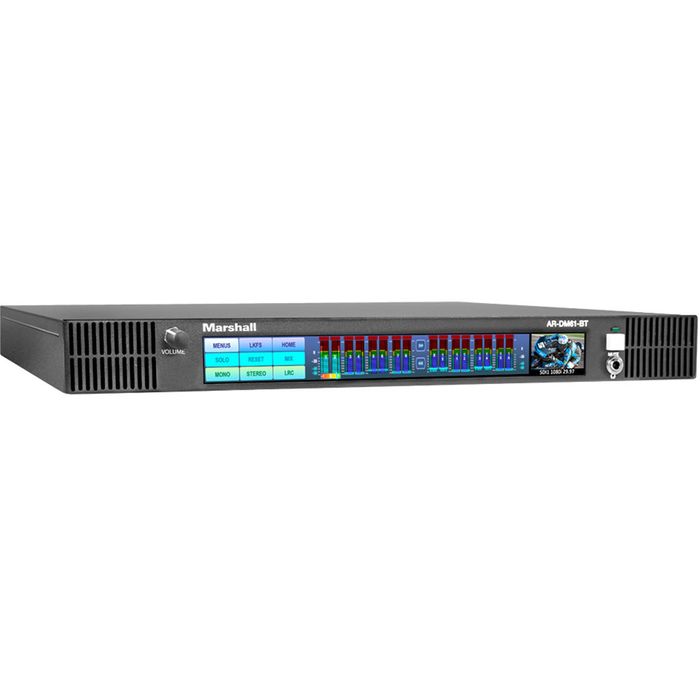

Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor
Description
The AR-DM61-BT Multi-Channel Digital Audio Monitor from Marshall is offered as a powerful audio/video quality-control solution and can be used for TV stations, broadcast trucks, transfer stations, and house of worship facilities.
It features flexible matrix routing, format conversion tools, and a pair of speakers packed into a single rack unit (1 RU). Built with a 10" wide LCD touchscreen, the AR-DM61-BT can display up to sixty-four audio channels from multiple signal types and includes a built-in live video preview confidence monitor.
Furthermore, the AR-DM61-BT supports two dedicated 3G-SDI inputs with loop-through (one MADI compatible), one HDMI input, four stereo AES inputs, eight balanced analog audio inputs, and eight balanced analog outputs. The sealed speaker enclosures maximize output in a small form factor for use in noisy control room environments where space is crucial.
Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future-proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Finally, additional support is available for the latest Dolby formats, Dante networked audio technology, and a built-in web server for software updates, storing, and retrieving presets.
Key Features:
• 10-inch LCD Intuitive Touchscreen Panel displays up to 64 channels vertical or switch to 96-step high precision horizontal bars
• Special LKFS bars provides weighted display for group of channels
• Built-in live video preview monitor
• Accepts multiple signal type input
• High-powered stereo speakers (up to 100 dB output)
• Push-to-mute functionality
• Slim 1 RU Design
• Dolby™ option module supports AC-3, Dolby-E and more
• Optional Dante™ Networked Audio module with support for AES 67
• Built-in web server makes it convenient to setup and customize
• Software upgradeable "Future-proof" platform
What's Included?
• Marshall Electronics AR-DM61-BT Multi-Channel Digital Audio Monitor
• 24 VDC Power Adapter
• Removeable Rack Ears
