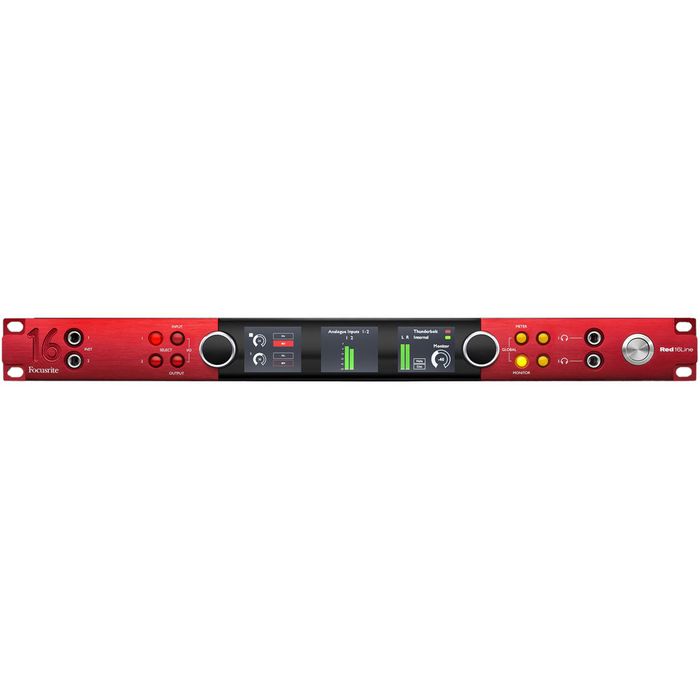

Focusrite Red 16Line 64 x 64 Thunderbolt 3 Audio Interface
Description
The Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD from Focusrite Pro features low latency AD/DA conversion, Red Evolution mic preamps, up to 121 dB dynamic range, low round-trip latency, and expansion over Ethernet for networked audio. It provides both DigiLink connectors and Thunderbolt connections, allowing easy switching from Pro Tools | HD to a second DAW, without the need to reconfigure option cards in the interface. Simply change the host mode either in the remote control software, or on the device front panel and change DAWs in seconds.
The Red 16Line audio interface has audio converters with over a 118 dB dynamic range A/D and 121 dB dynamic range D/A (A-weighted). You can build your mix on the DAW and use it whether you are overdubbing (monitoring the input you are recording with the Focusrite Control software mixer) or playing back, with all your plug-ins in place.
The audio interface features 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs. The two digitally-controlled Red Evolution mic preamps provide up to 63 dB of clean gain along with stereo linking, individual phantom power, high-pass filter, phase reverse, and Air mode. With a dual-port Dante card, it allows you to expand your studio over Ethernet for more channels at higher sample rates and lower latency anywhere in your network.
Key Features:
• Connect to Pro Tools | HD, Thunderbolt enabled computers, and Dante simultaneously without option cards
• High-performance audio conversion with over 118 dB dynamic range A/D and 121 dB dynamic range D/A (A-weighted)
• Low round-trip latency to track through plug-ins and record virtual instruments in real time
• 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs
• Two digitally-controlled Red Evolution mic preamps with up to 63 dB of clean gain, stereo linking, individual phantom power, high-pass filter, and phase reverse
• Air mode on the preamps, giving recordings the clarity of a transformer-based ISA
• Two Thunderbolt 3 ports as standard to connect additional Thunderbolt products
• Dual-port Dante card for more channels at higher sample rates
• Three LCD displays for accurate level metering
• Focusrite Control software mixer for setting up monitoring and routing configurations, with remote control of preamps
• Two headphone outputs
• Connect multiple digital sources using word clock I/O and loop-sync I/O
• Two instrument inputs on the front panel
• AAX/AU/VST-compatible Red 2 and Red 3 EQ, and compression plug-ins
What's Included?
• Focusrite Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD
• Power Supply
• Thunderbolt 3 Cable
• Control Software
• RedNet PCIe Drivers (Included with RedNet Control Download)
• Audinate Dante Controller (Installed with RedNet Control)
• Red 2 and 3 Plug-in Suite
• Softube Time and Tone Bundle
