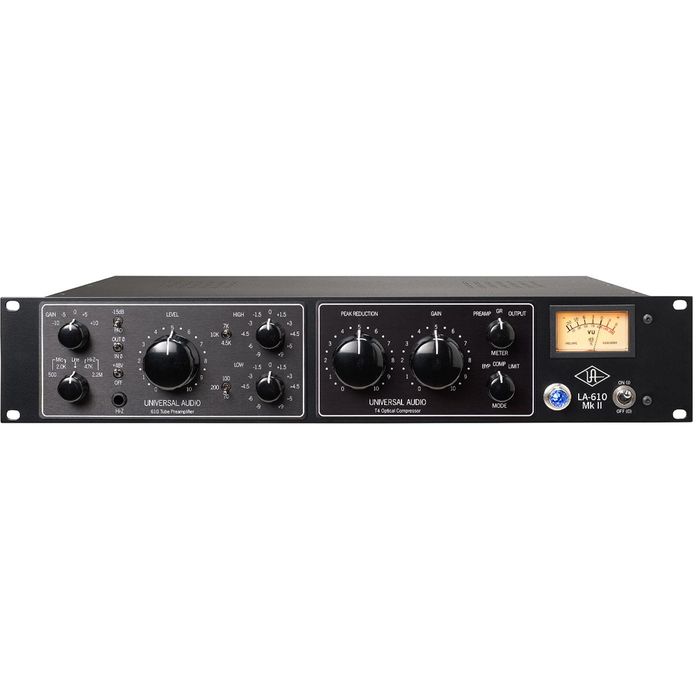

Universal Audio LA-610 MKII - Recording Channel
Description
The LA-610 Mk II from Universal Audio brings vintage, "all tube" sound to the modern channel strip format. The unit combines a 610 Mic-Pre/EQ/DI section, based on the console modules developed by Bill Putnam in the 1960s, with a T4 Opto-compressor, and houses them in a 2U rack-mount enclosure. The 610-tube preamp, DI and EQ deliver a sound that is as timeless as it is legendary, and a hallmark of many classic recordings. The simple operation and program dependent nature of the T4 compressor provides extremely musical control.
The LA-610 MkII is sonically very versatile and can function as an ideal front-end for tracking into a digital audio workstation. The preamp is augmented with two bands of shelving EQ, followed a T4 based optical compressor. Although not an exact LA-2A clone, the compressor circuitry nevertheless shares its signature sound by utilizing its unique combination of an electro-luminescent panel and photo-resistors. Three 12AX7A tubes, a single 6072A and 6AQ5 tube combine to provide "warmth" and overall even tonal balance.
The Mk II delivers several enhancements over the original LA-610. A true compressor bypass switch is now available which completely avoids the compressor circuitry. Other changes improve the performance of the output signal, improved consistency with input gain values and feedback-style shelving EQ improves the EQ stability. An auto-sensing, universal power supply is included, along with larger and better lit metering.
Key Features:
• All-tube mic preamp design derived from legendary Bill Putnam-designed 610 modular console
• Authentic Teletronix LA-2A-style T4 opto-compressor section
• MkII exclusive features include: true compressor bypass, larger metering, increased output, and auto-switching power supply
• Mic pre with Gain and Level controls, variable impedance switching, and instrument DI for recording tone “color”
• High and Low frequency shelving EQ
• Complete vintage channel strip at groundbreaking price within project studio reach
• UA build quality and heritage, audiophile components, hand-assembled in the USA
What's Included?
• Universal Audio LA-610 MKII - Recording Channel
• AC Power Cable
• One (1) Year Warranty
