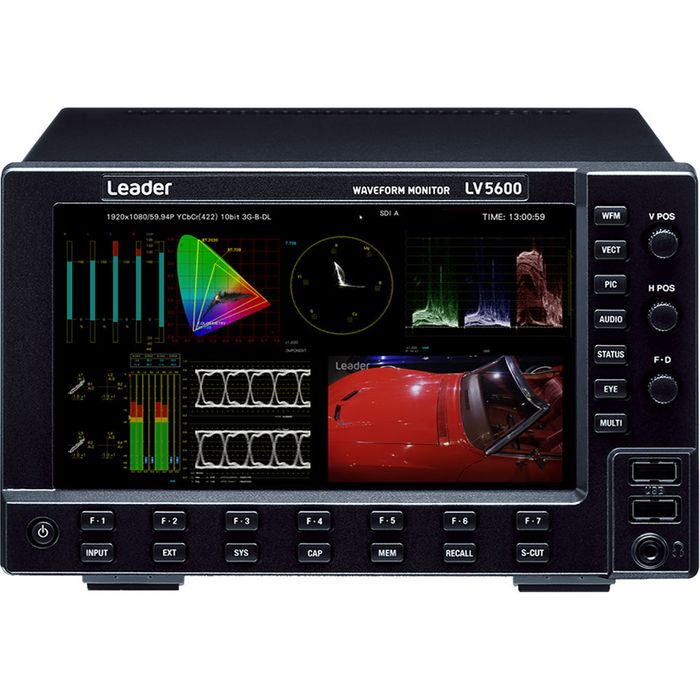

Leader LV-5600 Waveform Monitor - SDI and IP Signals
Description
The LV5600 is a hybrid-type waveform monitor compatible with 4K/HD/SD SDI signal and IP signal.
Key Features:
• Supports various signal inputs
It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, 10G/25G IP (video over IP).
• Excellent operability
The LV5600 adopts a 7-inch full HD panel with a touch panel function.
• Eye pattern display
From SD-SDI to 12G-SDI
In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.
• Customizable layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
• SDI signal generation function
SDI signal generation function can handle from HD-SDI to 12G-SDI.
• HDR
The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible.
• Focus Assist
We developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.
