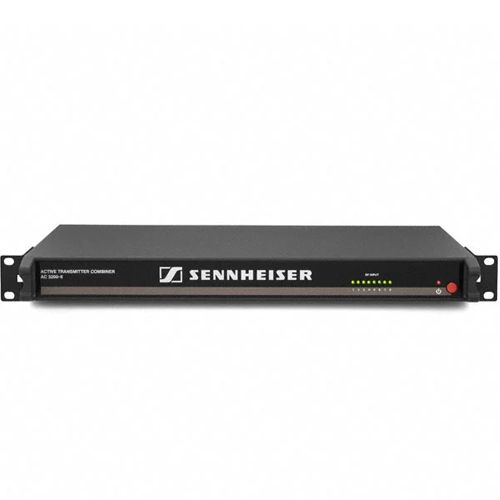

Sennheiser AC 3200-II Active 8-Channel Transmitter Combiner
Description
Active 8-channel antenna combiner for large, wireless monitor systems. Up to eight inputs, up to 100mW per channel, for transmission via single antenna. Avoids bothersome intermodulation; quick overview via LED strip.
The AC 3200-II is an active 8-channel transmitter combiner for bundling the antenna signals in large wireless monitoring systems. Designed for the 2000 Series rack-mount monitor transmitters, it is ideal for large productions where reliable transmission and long reach are key. The AC 3200-II allows up to eight signals to be transmitted from a single antenna. In multi-channel systems it is an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide the user with a reliable system overview.
Key Features:
- Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters
- Active 8-channel, 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
- Significant improvement of RF performance for multi-channel systems
- Broadband RF design to cover the UHF frequency range from 500 to 870 MHz
- Maximum input power of 250mW
- LEDs on the front show whether a signal is present at the RF input
What's Included?
• 1 AC 3200-II active transmitter combiner
• 1 NT12-125D power supply unit
• 3 mains cables (EU/UK/US)
• 4 self-adhesive device feet
