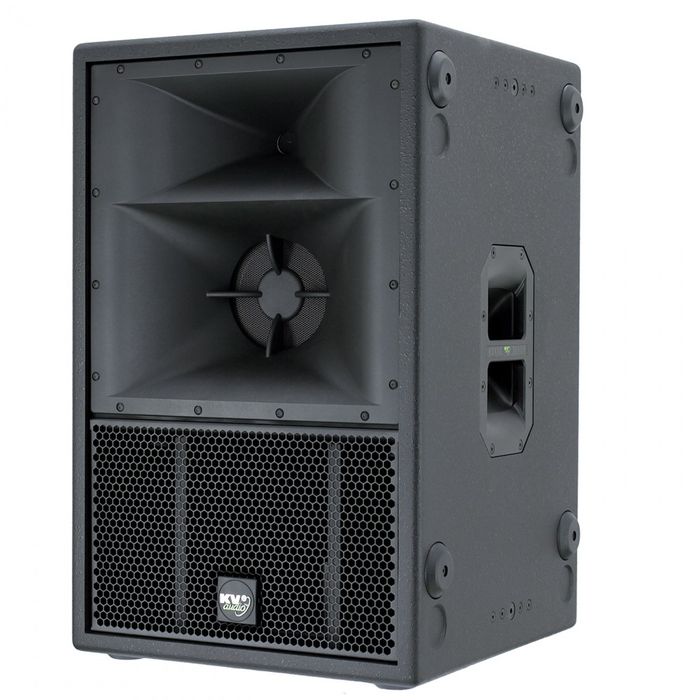

KV2 Audio ES1.0 Active-Driven Speaker 3 Way, Mid/High
Description
The ES1.0 is a 3-way, very high output, active-driven, mid-high / mid-bass module designed as part of a complete ES system, driven by the EPAK2500/R control and amplification unit. The ES1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES1.0 (running two horizontally per side) it becomes an even more powerful tool, providing peak SPL of 139dB and a throw of up to 40 metres for applications of up to 3000 people.
Key Features:
• Professional Baltic birch construction with wear resistant polymer coating
• 131dB sustained output, 134dB peak
• Controlled wide dispersion 90° x 40°, rotatable mid-high horn for mounting in vertical or horizontal orientation
• 1.75" (44 mm) Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, incredibly low distortion and extended frequency response
• 6" mid-range driver with a 1.75" (44 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
• Horn loaded, 12" mid-bass driver with a 3" (76 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
• Three way active requirement – 900W from the EPAK2500/R providing 600W for the 12" low mid, 200W for the 6" midrange and 100W for the high frequency driver
• Proprietary side handle design for simlified handling and carrying
• High impact low friction feet, asymmetrically located on three sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
• Four internal corner braces tied to eight M10 suspension points. A total of 24 suspension points are available for custom installation applications
• Top hat for pole mounting applications
• Weather proofing option and special paint finishes available on request
Applications: Specifically designed as an extreme high output, compact mid-high enclosure as part of ES systems
• For live performance and music playback
• Small to large live concerts
• Small to medium nightclubs
• Houses of worship
• Portable PA
• Scalable into larger multi-tasking projects and systems
