KV2 Audio VHD2.0 - Mid High Enclosure
Description

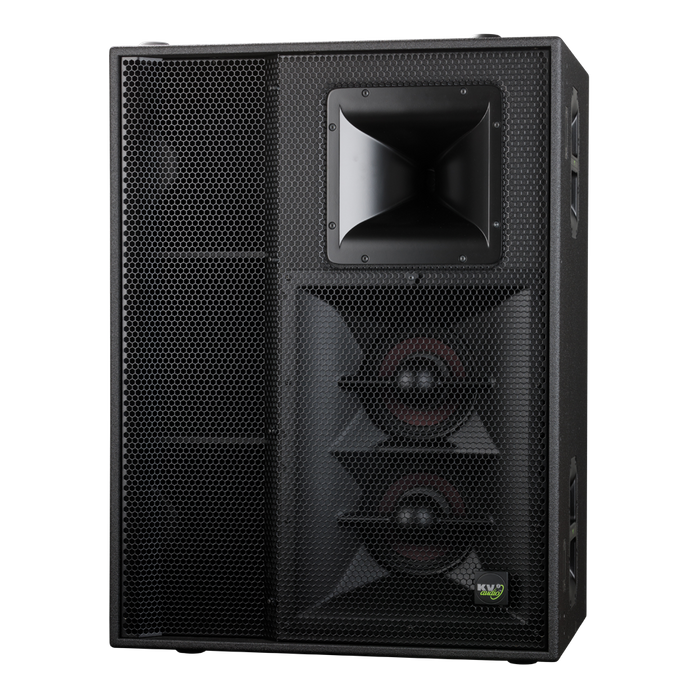

A powerful long throw system for audiences of up to 20,000 people without requirement for additional delay systems. A three-way design featuring a 3" compression driver with NVPD treated dome assembly, two horn loaded 8" speakers featuring AIC technology and two horn loaded 12" mid-bass speakers. All speakers employ neodymium magnets to increase force, improve control and lower weight. The VHD2.0 has an 80° horizontal and 40° vertical dispersion and left and right versions of the speaker are offered in order to create larger format vertical arrays of the mid high system.
Key Features:
• Professional Baltic birch construction with wear-resistant polymer coating
• Four full length pieces of fly-track (two per side) and two five point, pull back pieces on the rear of the cabinet
• Very High Definition audio reproduction
• 139dB sustained output, 142dB peak
• Controlled wide dispersion 80° x 40° Mid / High horn
• New state of the art 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
• Two 8" Trans-Coil midrange drivers, with a 3" (76 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
• Two horn loaded 12" mid-bass drivers with 3" (76 mm) inside/outside, epoxy baked, high temperature voice coil assemblies and neodymium magnetic structures
• Three way active requirement - 2000W from the VHD 2000 providing 1200W for the 12" Low Mids, 600W for the 8" Midranges and 200W for the High Frequency
• Proprietary side and top handle design, (6) for simplified handling and carrying
• High impact low friction feet, allowing lock-in to the VHD subwoofers and easy cabinet movement
• Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
• Weather proofing option and special paint finishes available on request
Designed as an extreme high output and performance mid-hi unit as part of the VHD systems Very High Definition for live performance
• Medium to large concert venues
• Scalable from small to large systems
• Full range standalone use in public areas
• Hire and Production
• Large Theatres
