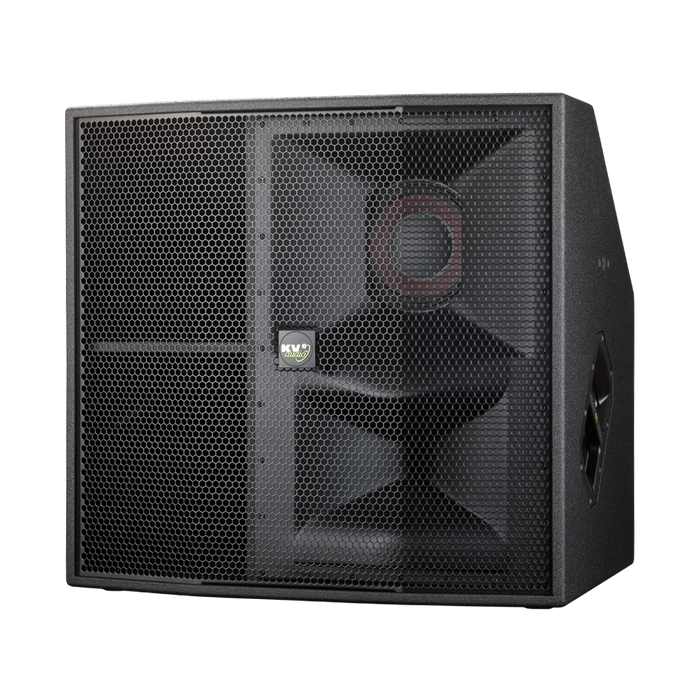

KV2 Audio VHD1.0 - Mid High/Down-fill Enclosure
Description
The VHD1.0 downfill enclosure features a single 12" low mid woofer, an 8" transcoil mid-range woofer and the same compression driver as the VHD2.0 on a wide angle 110° horizontal by 40° vertical horn. The rear of the box has been angled for use as a downfill with the VHD2.0. Alternatively as a stand-alone box up to three VHD1.0s can be powered from a single VHD2000 amplifier. Like the VHD2.0, VHD1.0 is available in left and right versions for downfill applications. Designed to be powered as a slave from the VHD2.0 cabinet or directly from the VHD2000 amplifier, all equalization, set up and level are preset providing a plug and play solution for large scale touring and high quality installation.
Key Features:
• Professional Baltic birch construction with wear-resistant polymer coating
• Cut away down angle for correct positioning when flown underneath VHD2.0 cabinet
• Four pieces of fly-track (two per side)
• Very High Definition audio reproduction
• 134dB sustained output, 137dB peak
• Controlled wide dispersion 110° x 40° Mid/High horn with a flat response to 180°
• Revolutionary 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
• 8" Trans-Coil midrange driver, with a 3" (76 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight. Horn loaded 12" mid-bass driver with 3" (76 mm) inside/outside, epoxy baked, high temperature voice • coil assembly and neodymium magnetic structure
• Three way active requirement - 1000W from the VHD 2000 providing 600W for the 12" Low Mid, 300W for the 8" Midrange and 100W for the High Frequency
• Proprietary side handle design (3) for simplified handling and carrying
• High impact low friction feet, allowing lock- in to other VHD cabinets and easy cabinet movement
• Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
• Weather proofing option and special paint finishes available on request
Designed as a true mid high - downfill enclosure to accompany the VHD2.0 as part of the VHD systems
• Medium to large concert venues
• Fixed installation
• Outdoor events
