Hear Technologies Freedom Back System (Band B)
Description

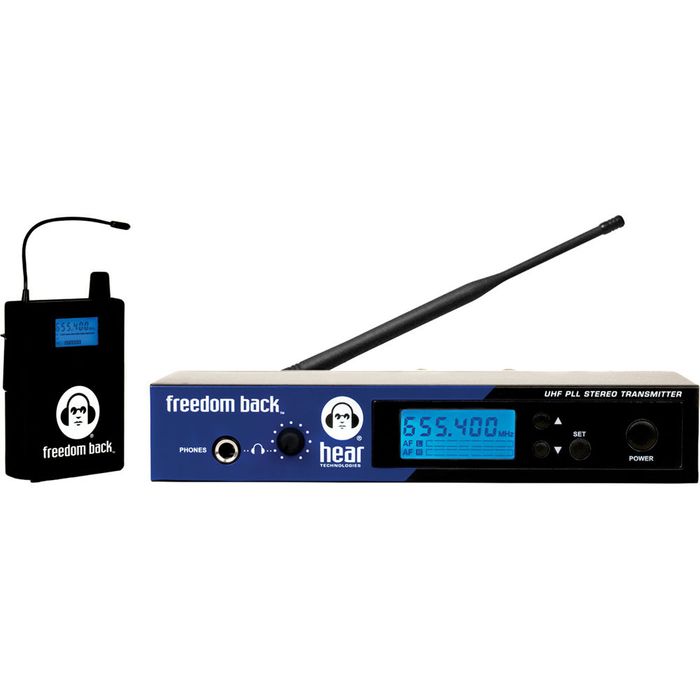

The Hear Technologies Wireless Stereo In-Ear Monitoring System is a UHF wireless receiver and transmitter setup designed to deliver strong, clear signal and easy operability for audio engineers, musicians, singers, and actors in clubs, houses of worship, concert venues, and live stage applications. It includes a wireless bodypack receiver, a stereo transmitter, an external antenna and antenna extension cable, a rackmount kit, batteries, a power supply, and a carrying case.
The transmitter sends your monitor mix to the wireless bodypack receiver, which unlocks freedom for the performer to move around the stage. Backlit LCDs and simple function buttons contribute to the system's ease of use. The system operates in the 655 to 679 MHz frequency band and allows access to 120 channels per band.
Hear Technologies Freedom Back Receiver UHF Wireless Bodypack Receiver (B: 655 to 679 MHz)
The Hear Technologies Freedom Back Receiver is a UHF wireless bodypack receiver designed to deliver clear mix monitoring with wireless freedom for musicians, singers, and actors in clubs, houses of worship, concert venues, and live stage applications. It operates in the 655 to 679 MHz frequency band and is compatible with your Freedom Back wireless transmitter. Ten groups allow access to 120 channels per band.
Featuring an external antenna, an integrated belt clip, and an 1/8" stereo headphone output, it enables simple and fast physical setup. A single rotary control provides on/off switching and volume adjustment. Easily check the frequency, group, channel, battery indicator, and mono/stereo status via the backlit LCD. A top-panel LED indicates presence of RF signal. Powered by two AA batteries (included), the Freedom Back Receiver offers approximately four to five hours of operating time.
• Use unlimited receivers (available separately) with one transmitter on the same frequency
• Backlit LCD shows frequency, group, channel, battery indicator, and mono/stereo status
• 1/8" stereo mini jack for connection of headphones or in-ear monitors
• Rotary control provides on/off switching and volume adjustment
• Top-panel LED indicates RF signal presence
• Up, down, and set buttons for easy operation
• Two AA batteries provide approximately four to five hours of operating time
Hear Technologies Freedom Back Transmitter UHF Wireless Transmitter with Rackmount Kit (B: 655 to 679 MHz)
The Hear Technologies Freedom Back Transmitter is a UHF wireless transmitter with a rackmount kit designed to deliver strong, clear signal transmission to musicians, singers, and actors in clubs, houses of worship, concert venues, and live stage applications. It operates in the 655 to 679 MHz frequency band and is compatible with your Freedom Back wireless receiver. Ten groups allow access to 120 channels per band. A rear-panel switch enables quick switching between mono and stereo modes.
Route your mix to the XLR-1/4" combo inputs. Utilize the -12 dB pad and adjustable input levels to optimize the audio signal strength. A built-in automatic limiter inhibits overloading and distortion.
• Supports unlimited receivers (available separately) with one transmitter on the same frequency
• Use up to ten transmitters in the same space
• 120 digitally selectable UHF channels
• Backlit LCD shows frequency, group, channel, audio level, and battery status
• 1/4" TRS output for connection of headphones or in-ear monitors
• Front-panel headphone volume adjustment
• Separate left and right input level controls
• Up, down, and set buttons for easy operation
• External whip antenna can be front-mounted with included rack ears and extension cable
• Includes external power supply
What's Included?
• Hear Technologies Freedom Back Receiver UHF Wireless Bodypack Receiver (B: 655 to 679 MHz)
• 2 x AA Batteries
• Hear Technologies Freedom Back Transmitter UHF Wireless Transmitter with Rackmount Kit (B: 655 to 679 MHz)
• Power Supply
• External Antenna
• Antenna Extension Cable
• Rackmount Kit
• Carrying Case
