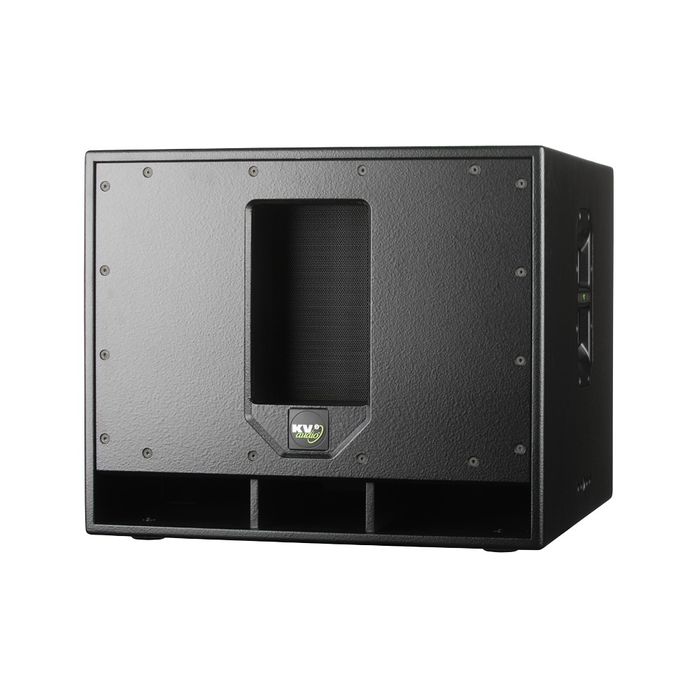

KV2 Audio EX2.2 - Active Bass Module
Description
The EX2.2 is a double 12", compact, active subwoofer system. On- board electronics include a stereo crossover with high pass outputs and full overdrive protection. Featuring KV2 Audio’s switching amplifier technology, precision manufactured woofer designs and a high efficiency, twin chamber acoustic design, the EX2.2 delivers tight, fast, controlled bass response at very high output levels from a small cabinet footprint.
Key Features:
• Professional, Baltic birch construction with wear resistant polymer coating
• 130dB sustained output, 133dB peak
• 1000W high efficiency, current-enhancing, switching, low frequency amplifier
• Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
• Excellent reproduction of bass frequencies with high transient content at high output levels
• Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs
• Two 12" high output, low frequency drivers with 3" (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures
• Two recessed side handles for simplified handling and carrying
• Acetyl copolymer, high impact, low friction feet are located on two sides allowing lock-in and easy cabinet movement
• Two internal corner braces with four M10 suspension points
• M20 top hat for pole mounting applications
• LED indicators for signal present, limiter, thermal condition and power ON status
Applications: Specifically designed to accompany and compliment the EX10 / EX26 as a true full range high output system
• Portable PA applications
• Fixed Installations
• Scalable into multiple-larger systems
• Easy to add to existing systems
