KV2 Audio KT2.0 - K-RIG Active-Driven Mid-Hi Module
Description

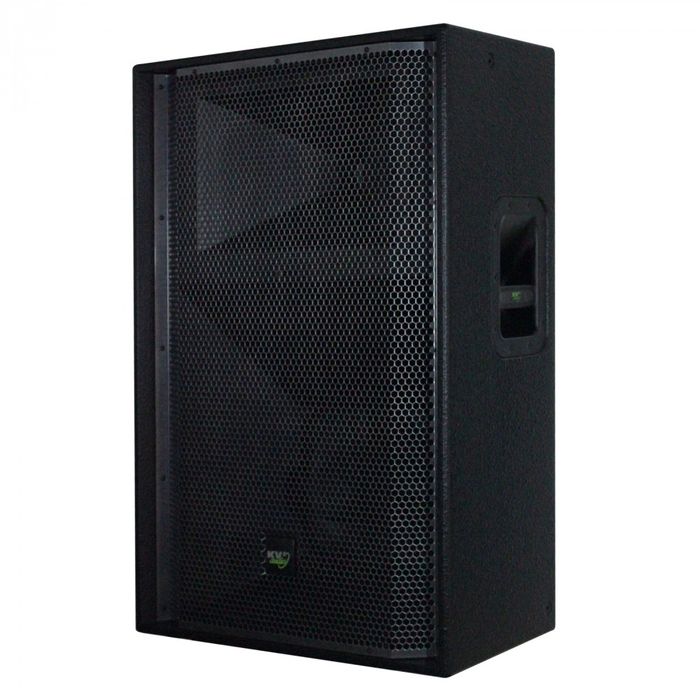

The KT2.0 is the Mid High Module for K-RIG. Its two-way horn loaded design provides optimal output and coverage that far exceeds that of a normal frontloaded 12 and horn box or a number of small line array elements. It consists of a horn loaded high power 12" mid bass speaker with integral phase plug and a 2.5" titanium diaphragm compression driver on an 80° H x 40° V constant directivity, wide dispersion horn. The KT2.0 is driven and controlled by two channels of the K-PAK controller amplification system and must be used with two KT2.15 bass speakers. It is constructed of poplar to reduce weight for ease of stacking and coated in a heavy-duty, wear resistant polymer coating.
Key Features:
• Professional Baltic birch construction with wear resistant polymer coating
• 132dB sustained output, 135dB peak
• Controlled wide dispersion 80° x 40°
• 2.5" (64 mm) Titanium diaphragm compression driver with complex geometry phase plug and ferrite magnetic structure
• Horn loaded, 12" mid-bass driver, with a 2.5" (64 mm) voice coil and ferrite magnetic structure
• Two way active requirement - 700W from the KPAK Amplifier providing 500W for the 12" low mid and 200W for the high frequency driver
• Proprietary side handle design for simplified handling and carrying
• High impact low friction feet, for lock-in and easy cabinet movement
Applications: Specifically designed as a Mid/Hi speaker for the K-RIG loudspeaker systems
• Portable PA
• Dance clubs
• Reproduced music
