Datavideo HS-1600T MKII HDBaseT Video Streaming Studio
Description
Bring your broadcast mobile with this HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio from Datavideo. This mobile studio utilizes HDBaseT technology to control up to three Datavideo PTZ cameras while streaming H.264 video to the web. It features three HDBaseT inputs that can control connected cameras and accept video inputs, as well as one HDMI input to add an additional video source. Three HDMI program outputs allow you to connect to monitors to display your program, one HDMI is for graphics output, and a streaming RJ45 LAN output connector lets you stream live to the Internet using a minimum Cat 6 cable. Depending on the data rate of your stream, you can also record to an optional SD card.

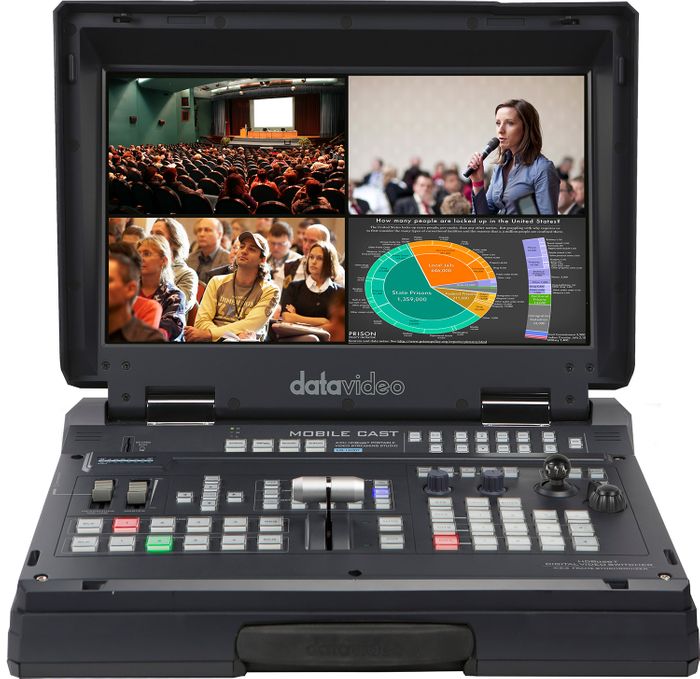

The HS-1600T Mark II is built into a suitcase-like form with a 17.3" TFT LCD monitor with 1920 x 1080 resolution built into the lid. The rest of the unit features all the switcher controls, including a T-bar for transitions, a joystick, audio sliders, and a host of buttons for controlling your PTZ cameras, inputs, program outputs, and streaming video. There are also 2RCA and XLR audio inputs to mix analog audio into your program.
The monitor supports multiview mode, while the HDMI and streaming output support your program output. The switcher also supports popular mix effects, including picture-in-picture, wipe, mix, and fade, and it incorporates one upstream keyer. It can also send red and green tally signals via the built-in tally connector. The built-in real-time encoder enables live streaming, and you can stream and record your program at the same time.
Key Features:
- Built-In 17.3" 1080p TFT LED Monitor
- 1 x HDMI Input & 3 x HDBaseT Inputs
- 1 x HDMI & 2 x HDMI Program Outputs
- Real-Time H.264 Web Streaming Encoder
- 1 x HDBaseT Output, 1 x Streaming Output
- PiP, Wipe, Mix, Fade & Upstream Keyer
- Control up to 3 x Datavideo PTZ Cameras
- 2RCA & XLR Audio Inputs
- Supports Output Tally Signal
- Records to SD Cards
