Buzz Audio ELIXIR Mic Preamp for 500 Series
Description
Standing out from the crowd, the Elixir Class A microphone preamp offers exciting and vibrant tones in the 500 Series format.
The Elixir is an ideal compliment to other 500 series preamps that feature a dark or middly sound. The wide frequency response and fast transient response plus color from the output transformer generate a "warm sweet liquid" sound quality that sets it apart from that crowd. These attributes make the Elixir particulary good at recording percussion, drums (you need to hear it on snare), vocals and stringed instruments. When used at high gains and high output levels the sound of the Elixir does not turn "dirty", unlike preamps with poor slew rate performance thereby generating dynamic distortions.

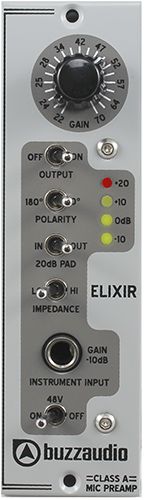

Controls and Functions:
• GAIN - 41 detented pot that sets gain between +22 to +70dB.
• POLARITY - normal or reverse polarity switched at the input inverts the signal 180 degrees, used to match spaced microphones such as top and bottom snare drum..
• 20dB PAD - this switch introduces a 20dB pad right at the mic input for high level signals. Because it is part of the input circuit network, using the pad does not change the sound of the preamplifier.
• IMPEDANCE - selects high or low input impedance. For the mic input it is 3kohms or 1kohms. There is no right or wrong setting for this function but it can change the tone of dynamic and ribbon microphones. When using the DI input it is switched 1MEG ohms or 20k ohms, which may similarily alter the tone of bass or guitar pickups.
• +48V - switches on the phantom power for condensor microphones and powered DI boxes.
• METER - four leds give visual indication of peak output level.
Specifications:
• Min Gain Mic; +22dB (-2dB with pad in)
• Max Gain Mic; +70dB
• Min Gain Instrument; +12dB (-3dB with pad in)
• Max Gain Instrument; +60dB
• Maximum Output Level; +34dBu into 3k ohm load
• Frequency Response; Mic 10Hz to 300kHz @ 20dB gain (-3dB)
• Frequency Response; Instrument 10Hz to 120kHz @ 20dB gain (-3dB)
• Slew Rate; 30V/uS @ +20dBu output level
• Harmonic Distortion measured at -20dBu input level, gain adjusted for +10dBu output level
Mic; 0.15% @ 100Hz, 0.01% @ 1kHz, 0.005% @ 10kHz
Instrument; 0.15% @ 100Hz, 0.015% @ 1kHz, 0.015% @10kHz
• EIN Mic; -132.5dB A wtg, 150ohm source Z
• Signal to Noise Ratio Mic; -73dB A wtg, input shorted
• Signal to Noise Ratio Instrument; -76dB A wtg, input shorted
• CMNR Mic; -78dB @ 100Hz, -100dB @ 1kHz, -100dB @ 10kHz
• Input Impedance Mic; 4k ohms/1k2 ohms switchable
• Input Impedance Instrument; 1MEG ohms/20k ohms switchable
• Size; (37Wx132H). Fits 1 space in API 500 series rack format
• Power requirements; 150mA +/- 15-18 volts DC, as supplied by frame power supply
*Specifications are typical of a production unit and are subject to change without notice.
