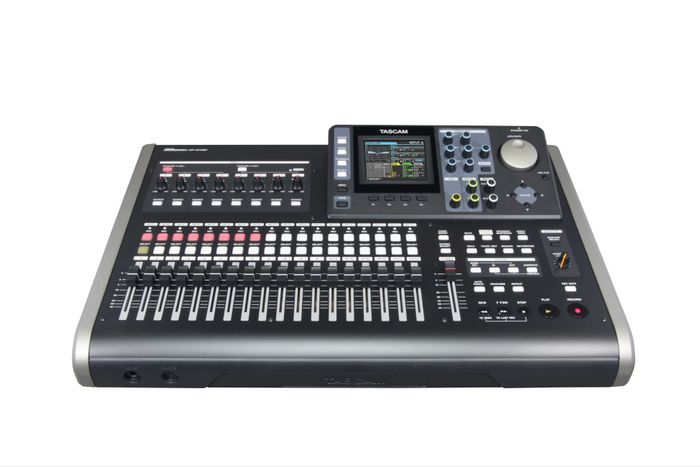

Tascam DP23 SD Digital Portastudio
Description
The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simultaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.
The concept behind the PORTASTUDIO series, which has a history spanning over 30 years, is one of intuitive operation. The series’ biggest feature is its hassle-free user interface built upon this concept. Various full-color LCD screens and self-illuminated buttons offer superb visibility. Furthermore, the same number of faders as tracks have been included, eliminating layer structuring and making volume control more intuitive.These measures have been taken to provide the user with a music production experience free of hassle.
The DP-24SD has 8 XLR/TRS combo inputs that can withstand multi-microphone recording with drums. Phantom power supply is also possible, including direct guitar input. With dynamic effects, which are indispensable for high-quality recording, up to 8 effects can be selected for inputs simultaneously. In addition, the DP-24SD comes with built-in guitar multi-effects, tuner, and metronome, allowing users to complete recording preparations with this device alone. This means the time you would normally spend on preparation is freed up for music production instead.
Key Features:
• Simultaneous 24-track playback
• 12 mono tracks + 6 stereo tracks
• Simultaneous 8-track recording
• 44.1k or 48k Hz, 16 or 24-bit recording
• 8 XLR/TRS combo connectors
• Phantom power supplied on all inputs (INPUT A-D,E-H)
• High-impedance input available (INPUT H)
• Stereo RCA output
• 2 effect send outputs (1/4" TS jack)
• 70mW/ch headphone amplifier
• Remote connector for optional RC-3F foot switch
• INPUT A-H and each track equipped with 3-band EQ
• Automatic punch in/out
• Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
• Undo and Redo function with Undo history
• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
• Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
• Mix-down effects (Reverb, Delay, Stereo Chorus)
• Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
• Track bounce function
• Virtual track (8 virtual track per one track: including use track)
• Locate mark up to 99 for one song
• File transferring via USB2.0
• Chromatic tuner
• Metronome
• 19 Faders
• Peak-hold function on the level meter of the LCD
• Sub-frame editing
• Dedicated AC adapter included (TASCAM GPE248-120200-Z)
• SD card included
• RoHS certified
