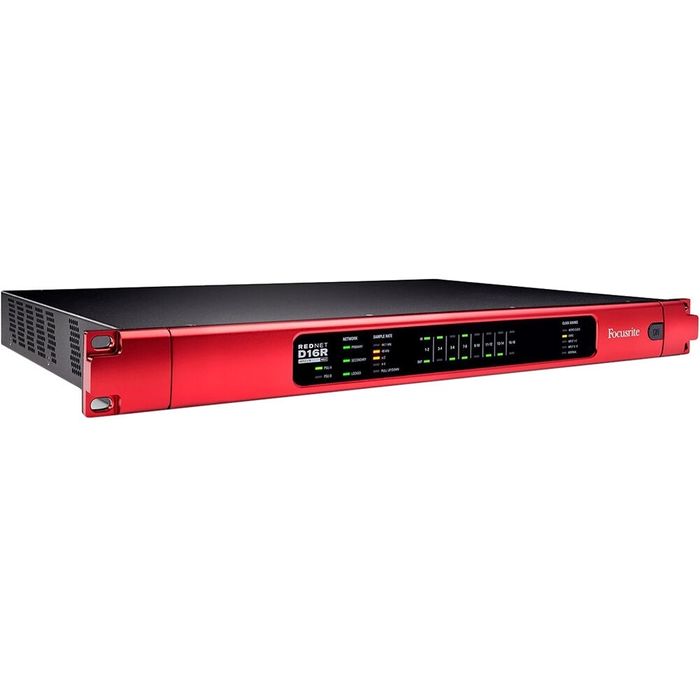

Focusrite Pro RedNet D16R MkII 16-CH Audio Interface
Description
Equip your Dante audio network with high-performance 24-bit / 192 kHz digital I/O with the Focusrite Pro RedNet D16R MkII , a rackmount 16x16 Dante digital audio interface offering flexible sample rate conversion, adjustable levels, and comprehensive remote control options for professional engineers in every environment from broadcast and touring applications to the studio to the dub stage.
With two DB25 connectors providing 16 channels of AES3 digital audio to and from the Dante audio network, the D16R MkII is ideal for bridging between digital consoles, power amplifiers, external AD/DA convertors, other AES3-equipped audio equipment, and any Dante network. Primary and secondary Dante connectivity is available on dual locking etherCON ports.
In addition to the main AES3 inputs and outputs, the RedNet D16R MkII features stereo S/PDIF I/O on RCA coaxial jacks and stereo AES3 I/O on XLR jacks. To allow synchronisation with a wide range of external sources and hardware, the interface includes BNC wordclock input and output ports and support for DARS (Digital Audio Reference Signal) through the XLR input.
The RedNet D16R MkII is fitted with two separate power supplies with auto-switchover capability to maintain reliable operation in the event of a failure. Plus, locking IEC inlets on the rear of the unit prevent unintended power cable disconnection at the interface. Power-supply status is indicated both remotely and on the front panel. Additionally, the interface features a rugged, roadworthy exterior that occupies just 1 RU of rack space.
A premium bonus is the Brainworx bx_console Focusrite SC channel-strip plug-in, a stellar digital emulation of the legendary and rare Focusrite Studio Console. Only 10 of the consoles were ever produced, but you can access its famed sound directly in your DAW.
Key Features:
• Studio, Live & Postproduction Engineers
• Dual Locking etherCON Dante Connections
• 16 Channels of AES3 I/O via DB25
• RCA S/PDIF I/O and XLR AES3 I/O
• Up to 24-Bit / 192 kHz Resolution
