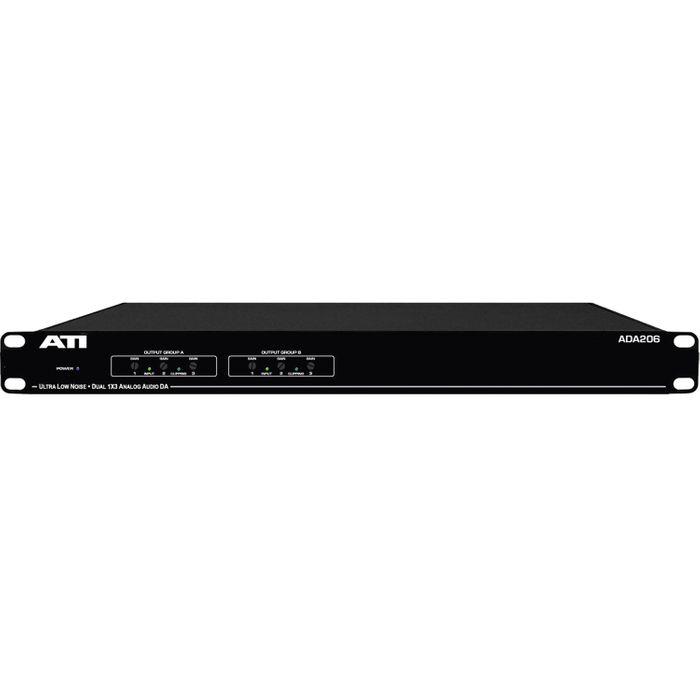

ATI Dual 1x3 Low Noise Analog Distribution Amplifier - XLR
Description
The DA206 is ideal for every application and every budget. Avoid RF and hum pick-up problems from noisy, lossy splitters. Prevent hard-to-find shorts from multiple taps on critical lines. Boost console outputs. Drive long lines. Eliminate rolloffs and distortion from mismatched load impedances and enjoy the maximum versatility that this unit provides. The DA206 gives you two inputs, each driving a master input gain adjustment and three individual output level trimmers. All outputs are ground sensing and active balanced. You can parallel the inputs with internal jumper plugs for up to 1 x 6 operation. Drive everything from balanced 600-ohm lines to HI-Z IHF phono jack inputs without matching pads or noise compromises. You get transparent performance, RF protected.
The DA206 is fully RFI protected with double ground plane PC boards, a shielded enclosure, split and bypassed input and output networks, ferrite suppressors with double line bypassing and non-concentric wound, semi-toroidal power transformers, and has active balanced outputs.
