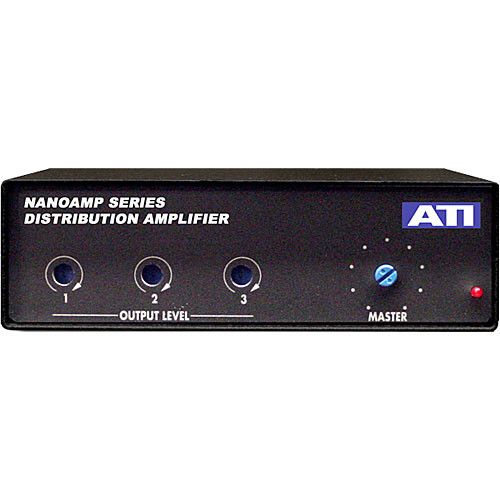

ATI Nanoamp Series DA103 Compact Distribution Amplifier
POA
Stock Code:
146211
Enquire for ETA
Description
The Nanoamp Series DA103 Compact 1x3 Line-Level Distribution Amplifier from ATI Audio is a compact, high-quality distribution amplifier that routes one line-level signal to three outputs. Input and output signals can be balanced or unbalanced, and connections are made via phoenix-type connectors. A master gain control is provided, along with individual gain controls for each of the output channels.
The unit also has an adjustable input gain from -20 to +4 dBu. Phantom power is available, and all outputs are individually servo-balanced. At only 1/3 rack size, the DA103 is ideal where high-quality audio distribution is needed and installation size is a factor.
Key Features:
- Independent Servo Balanced Outputs
- Splits and Isolates Audio Signal Lines
- Master Gain Control
- Individual Output Level Controls
- 1/3 RU-Wide Enclosure
- Multiple Mounting and Power Options
- Phoenix-type connectors for all I/Os
