ATI 1x6 Digital Audio Distribution Amplifier - XLR
POA
Stock Code:
146213
Enquire for ETA
Description

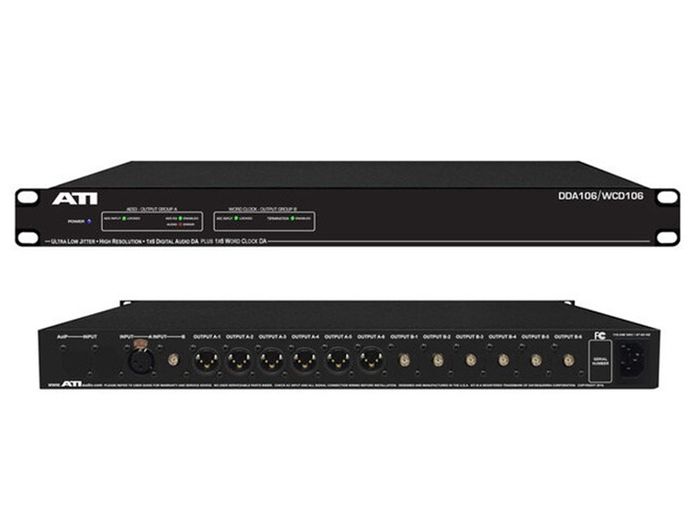

The ATI Model DDA106/WCD106 is an integrated package containing one 1x6 AES/EBU Digital Audio Distribution Amplifier and one 1X6 Word Clock Distribution Amplifier. Operation of the unit is simple and straightforward, and it is housed in a rugged 1U rack mount enclosure. All audio connections are made directly to the unit’s built-in XLR and BNC connectors, and no special breakout cables are required. The front panel provides status monitoring of all input signals, including displays for Input Locked, Audio Error and AES EQ Enabled as well as Word Clock Termination. Internal switchable re-clocking on all AES/EBU inputs is also provided.
Key Features:
- Accepts AES3 and AES11 Word Clock inputs
- Independent, transformer-isolated 1x6 AES/EBU Distribution Amplifier
- Sample rates of 32, 44.1,48, 88.2, 96, 176.4 and 192kHz
- Switchable input termination for all inputs
- 6 isolated 75 Ohm BNC Word Clock outputs
