Bluefish444 Epoch | Neutron Full Height With Genlock
Description

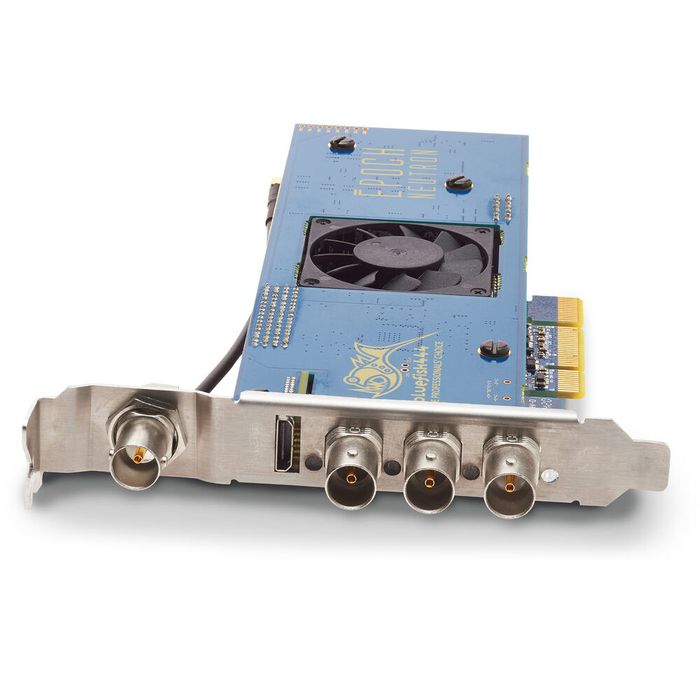

The Bluefish444 Epoch | Neutron with Dedicated Reference Connector features three bidirectional HD/SD-SDI connectors supporting up to DCI 2K/60 resolution video input and output with extremely low latency of sub on field or frame. The card also has an HDMI monitoring output and a reference BNC connector. Additionally, one of the three main SDI connectors can be set up as a reference input instead of a video signal I/O.
The Epoch | Neutron is an internal full-height, half-length 4-lane PCIe card compatible with Windows, Mac, and Linux systems, but it can also be installed in optional Thunderbolt enclosures from Sonnet and other brands for alternate multimedia workflow options, including integration with a second PCIe card, such as a PCIe-based SSD drive or RAID controller. Included with the card is a free download of the Bluefish444 IngeSTore acquisition software and Bluefish444 cross-platform SDK
Other features of the card include embedded audio support, high-performance bypass relays, 4 x 4 x 33-bit color matrix, 12-bit video signal path, hardware downstream keyer, full-duplex DMA data transfer, and 256MB of onboard memory
The Epoch | Neutron can be used for broadcast graphics, post-production, liveevents, and digital intermediate, mobile production, QC, video over IP, and streaming workflows among many others.
Key Features:
- Full-Height, 1/2 Length 4-Lane PCIe Card
- 3 x HD/SD-SDI I/O + HDMI Monitor Output
- Up to DCI 2K/60 Resolution
- 12-Bit Processing and Superlow Latency
- Reference Input
- Includes IngeSTore and SDK Software
- Thunderbolt Expansion Compatibility
- 256MB of Onboard Memory
- 4 x 4 x 33-Bit Color Matrix
- Hardware Downstream Keyer
