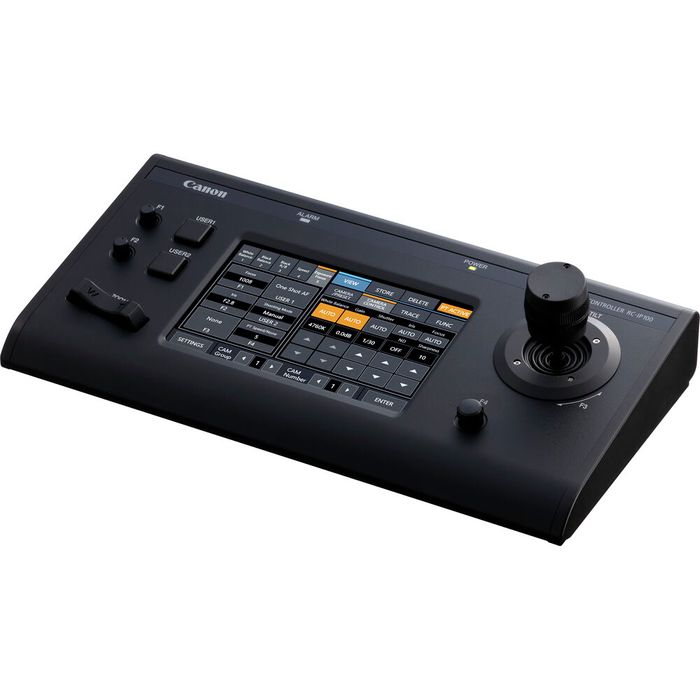

Canon RC-IP100 Touchscreen PTZ Joystick Controller
Description
Control your Canon PTZ cameras using IP or serial control with precision controls and a touchscreen display with the RC-IP100 Touchscreen PTZ Joystick Controller from Canon. The controller is compatible with the Canon CR-N300 and CR-N500 PTZ cameras and allows a single operator to control up to 100 cameras from a remote location. The 7" touchscreen provides configuration and camera settings control.
The IP100 is compatible with the proprietary Canon XC IP protocol, not a standard LAN, so you can create a private, secure network to control your cameras using the LAN port. It also features a second RJ45 port that allows you to control the cameras via RS-422 serial protocol. The bright 7" touchscreen allows you to control and configure up to 100 cameras and it can create and store up to 100 presets.
The precision joystick controls fine pan and tilt movements, and on the other side of the controller is a zoom rocker, providing an ergonomic layout to control pan, tilt, and zoom simultaneously with two hands. It also features four customizable buttons and knobs to make accessing settings and controls quick and easy. The DB-9 input/output port on the back allows you to monitor camera tally information. The unit is powered using a 12V barrel power adapter.
Key Features:
- Control up to 100 PTZ Cameras via IP
- Operates with Canon XC Protocol, RS-422
- 7" Touchscreen Control-Panel Display
- 6 x Assignable Controls, 100 Presets
- Precision Pan/Tilt Joystick, Zoom Rocker
- DB-9 Tally Input/Output
