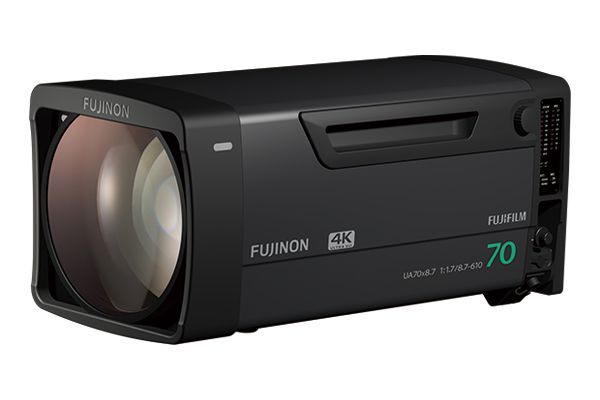

Fujinon UA70X8.7BESM 4K Premier Series Lens
Description
• 70x zoom lens covering the most frequently-used focal lengths from 8.7mm in wide angle to 610mm in telephoto
• Cutting-edge optical design to produce dynamic 4K footage in a diverse range of scenes
• Natural bokeh achieved with nine-blade diaphragm
• Stock-standard 16-bit encoder
Specifications:
Model Name - UA70x8.7BESM
Focal Length:
[1x]
8.7mm-610mm
[2x]
17.4mm-1220mm
Zoom ratio - 70x
Extender - 2x
Maximum aperture ratio - 1:1.7(8.7-340mm) 1:3.05(610mm)
Minimum object distance (M.O.D) from the front lens element - 3.05m
Object dimensions at M.O.D. (16 : 9 Aspect ratio):
[1x]
8.7mm 2,935mm x 1,651mm
610mm 44mm x 25mm
[2x]
17.4mm 1,537mm x 865mm
1220mm 23mm x 13mm
Angular field of view (16 : 9 Aspect ratio):
[1x]
8.7mm 57.7° x 34.4°
610mm 0.9° x 0.5°
[2x]
17.4mm 30.8° x 17.6°
1220mm 0.5° x 0.3°
Approx. Size - 258 x 264 x 610mm (H x W x L)
Approx. Mass - 23.8kg
