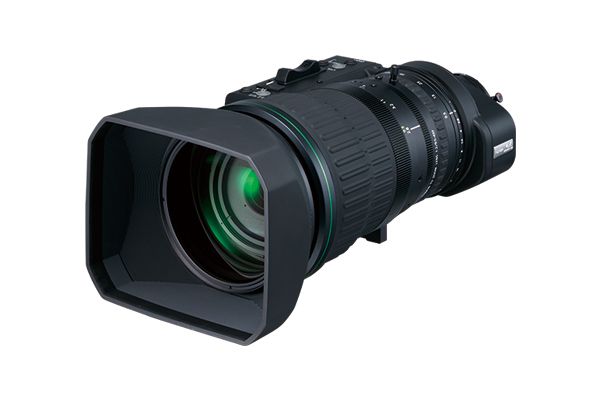

Fujinon UA46x9.5BERD 4K Plus Premier Series Lens
Description
• The world’s highest zoom ratio in a broadcast portable lens for 4K video production, realizing a 46x zoom
• Reproduces rich tones using state-of-the-art optical design technology
• Equipped with a proprietary anti-vibration mechanism, supporting 4K video production
• Newly developed drive unit realizes a high level of operability
• Realizes natural bokeh with the adoption of a nine aperture blade design
Specifications:
Focal Length:
[1x]
9.5mm-437mm
[2x]
19-874mm
Zoom Ratio - 46 x
Extender - 2 x
Maximum Relative Aperture (F-No.) - 1:2.0(9.5mm-224mm) 1:3.9(437mm)
Minimum Object Distance (M.O.D.) from Front Lens - 2.8m
Object Dimensions at M.O.D. (16 : 9 Aspect Ratio):
[1×]
9.5mm 2653mmx1491mm
437mm 59mmx33mm
[2×]
19mm 1331x748mm
874mm 30x17mm
Angular Field of View (16 : 9 Aspect Ratio):
[1×]
9.5mm 53.6°x31.7°
437mm 1.3°x0.7°
[2×]
19mm 28.3°x16.1°
874mm 0.6°x0.4°
Filter Thread - M127 x 0.75
Approx. Size - F146.5 x 345.8(FxLength)
Approx. Mass - 5.7kg(without lens hood)
