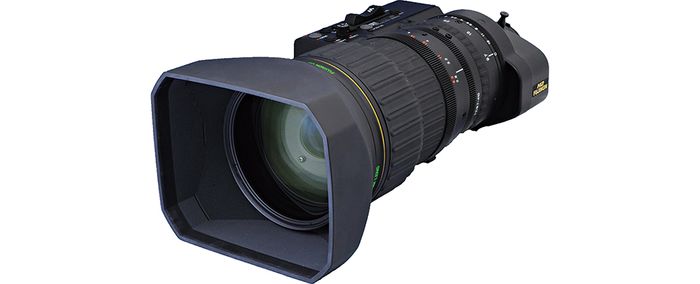

Fujinon HA42x13.5BERD HD Broadcast lens
Description
• Highest Zoom Ratio 42x and 1,140mm at tele end
• Excellent HD optical performance
• OS-TECH technorogy
• Extender Remote feature is optionally available.
Specifications:
Model Name - HA42×13.5BERD
Focal length:
[1x]
13.5-570mm
[2x]
27-1140mm
Zoom ratio - 42x
Extender - 2x
Maximum relative aperture (F-no.) - 1 : 2.8 (13.5-307mm) / 1 : 5.2 (507mm)
Minimum object distance (M.O.D.) from front lens - 2.8m
Object dimensions at M.O.D. (16 : 9 Aspect ratio):
[1x]
13.5mm 1,888 x 1,061mm
570mm 45 x 25mm
[2x]
27mm 944 x 530mm
1,140mm 22 x 13mm
Angular field of view (16 : 9 Aspect ratio):
[1x]
13.5mm 39.1° × 22.6°
570mm 1° × 0.5°
[2x]
27mm 20.1° × 11.4°
1140mm 0.5° × 0.3°
Filter thread - M127 x 0.75
Approx. Size - ?130 × 357.5mm(FxLength)
Approx. Mass - 5.4kg (without lens hood)
