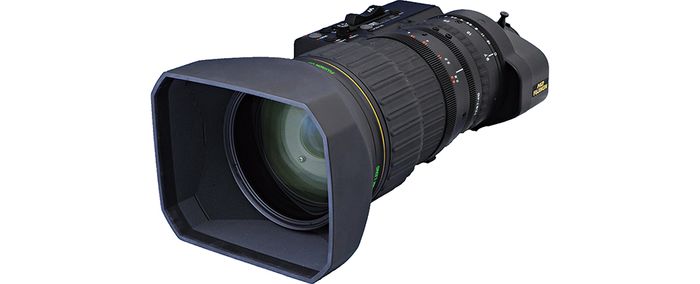

Fujinon HA42x9.7BERD HD Broadcast lens
Description
• Highest Zoom Ratio 42x
• Excellent HD optical performance
• OS-TECH technorogy
• Extender remote feature is optionally available.
Specifications:
Model Name - HA42×9.7BERD
Focal length:
[1x]
9.7-410mm
[2x]
19.4-820mm
Zoom ratio - 42x
Extender - 2x
Maximum relative aperture (F-no.) - 1 : 2 (9.7-225mm) / 1 : 3.7 (410mm)
Minimum object distance (M.O.D.) from front lens - 2.8m
Object dimensions at M.O.D. (16 : 9 Aspect ratio):
[1x]
9.7mm 2,619 x 1,472mm
410mm 64 x 36mm
[2x]
19.4mm 1,339 x 753mm
820mm 33 x 19mm
Angular field of view (16 : 9 Aspect ratio):
[1x]
9.7mm 52.6° × 31.1°
410mm 1.3° × 0.8°
[2x]
19.4mm 27.8° × 15.8°
820mm 0.7° × 0.4°
Filter thread - M127 x 0.75
Approx. Size - ?130 × 338.5mm(FxLength)
Approx. Mass - 5.3kg (without lens hood)
