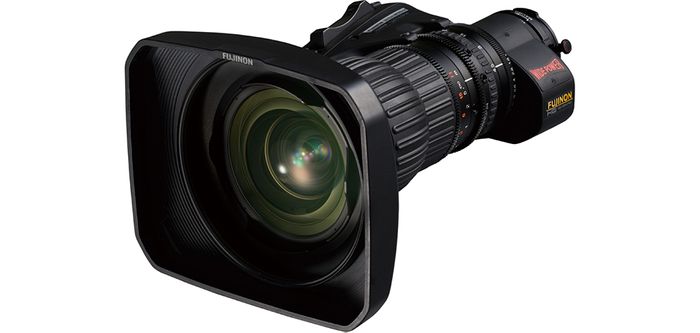

Fujinon ZA17x7.6BERD HD Broadcast Lens
Description
• Standard focal length coverage 7.6-137mm (275mm with extender)
• Outstanding HD High Optical Performance
• Equiped New Ergonomical Digital Grip
• 16bit encoders device for virtual system
Specifications:
Model Name - ZA17x7.6BERM / BERD
Focal length:
[1x]
7.6-130mm
[2x]
15.2-260mm
Zoom ratio - 17x
Extender - 2x
Maximum relative aperture (F-no.) - 1 : 1.8 (7.6-102mm) / 1 : 2.3 (130mm)
Minimum object distance (M.O.D.) from front lens - 0.6m
Object dimensions at M.O.D. (16 : 9 Aspect ratio):
[1x]
7.6mm 696 x 392mm
130mm 43 x 24mm
[2x]
15.2mm 362 x 204mm
260mm 22 x 12mm
Angular field of view (16 : 9 Aspect ratio):
[1x]
7.6mm 64.5° x 39°
130mm 4.2° x 2.4°
[2x]
15.2mm 35° x 20.1°
260mm 2.1° x 1.2°
Filter thread - M82 x 0.75
Approx. Size - f85 x 203mm (f x Length)
Approx Mass - 1.67kg (RM) / 1.74kg (RD) (without lens hood)
