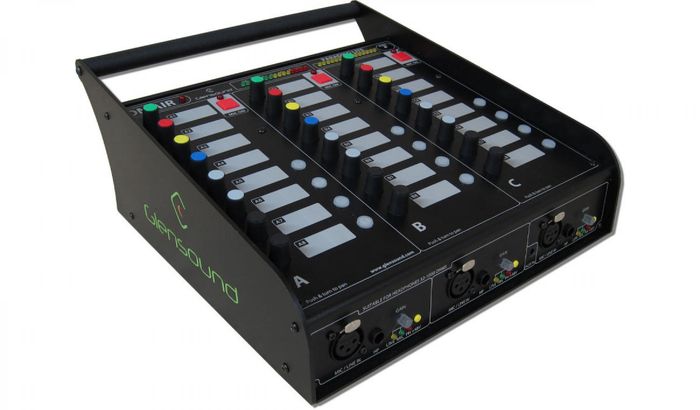

Glensound PARADISO LITE Dante AES67 Commentators Box
Description
Paradiso Lite is a commentators' box for 3 commentators. It can be used by itself to provide the commentary facilities alongside an OB truck for small events or multiple Paradiso Lites can be used at large events that require Worldwide broadcast coverage.
Audio links between the Paradiso and other equipment are by Dante (AES67 compliant) complete with redundant copper links. Analogue I/O and AES3 I/O are also provided directly from the unit for local connections and / or another layer of redundancy.
The Paradiso Lite has been designed to be intuitive & easy to use for Commentators who would rather be talking about the game than working out how the equipment works, and is also built to our exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.
8 off Audio Volume Controls for Each Commentators with Pan
On the top panel are 24 rotary headphone volume encoders. Internally they are connected to a DSP matrix and the sources can be set depending upon your preference.
At the top of the front panel on the right hand side is a row of clear bright yellow LEDs. When an encoder is turned to adjust the volume, this row of LEDs illuminate to show the current position of that encoder. When the encoder is used to adjust the pan of the source then this row of LEDs illuminate with a single LED indicating the current panned position.
Turning the encoder adjusts the volume, and simultaneously pressing down and turning the encoder adjusts the pan.
Peak Programme Meter (PPM)
The source of the PPM can be customised but is normally the outgoing programme mix. When a front panel gain control is adjusted the PPM automatically shows just the level from that input.
Robust Mic on and Talkback Buttons
There are 4 off round bright illuminated talkback buttons and 1 large square illuminated mic on button for each of the 3 commentators. The audio circuits that the outputs of these switches are routed to can be fully configured. The operation of these switches (momentary, latching etc) and the interaction of these switches (i.e. pressing a talkback switch mutes the main mic) can be fully configured by the windows 10 app.
Audio Inputs
There are 3 balanced audio inputs one for each commentator. Each of these inputs can be selected to accept a Microphone or Line level source. 48V phantom power can be turned on if in microphone mode.
A very high quality remote controlled microphone amplifier has been used followed by an exceptional analogue to digital converter to make the audio quality the best that it can possibly be.
Features:
- Comprehensive commentary unit
- Suitable for 3 commentators on 1 programme or 3 separate programmes
- Glitch free redundant Dante network audio
- Two copper network interfaces
- Multiple power sources (PoE x 2), Mains & DC
- Best microphone amplifiers available
- Local analogue and AES3 inputs & outputs for extra redundancy
- Includes our much revered Referee compressor/ limiter
- Windows 10 app for remote control & setup
