Glensound ADA 2:6 1 Input, 6 Output Stereo Amplifier
Description
The Signature ADA 2:6 is a broadcast specification 6 way stereo analogue distribution amplifier, designed to distribute one or two audio channels to multiple destinations.

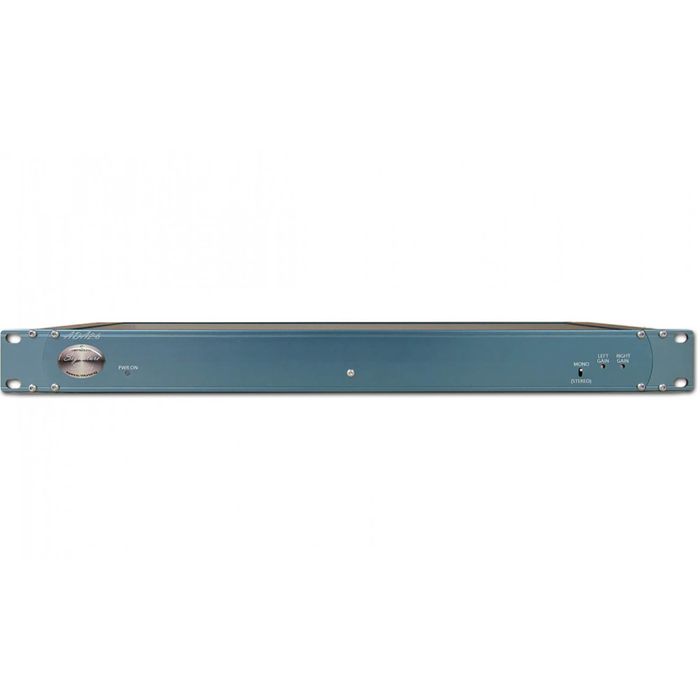

The ADA 2:6 has 1 x stereo input that is distributed to 6 x stereo outputs. A front panel toggle switch changes the operation of the unit to a mono distribution amplifier with 1 input and 12 outputs. The mono/stereo front panel toggle switch is recessed to prevent accidental operation and also provides the user with clear visual indication of the current mode.
Input gains controls are provided for both left and right inputs. These gain controls are accessed from the front panel and are multi turn preset pots (recessed to prevent accidental operation).
Audio inputs and outputs are electronically balanced on XLRs and can accommodate unbalanced connections if required. All outputs are protected, so a short circuit on one will not affect any of the others.
Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.
A bright front panel LED indicates that the unit is operational.
Features:
- 1 x stereo input to 6 x stereo outputs
- 1 x mono input to 12 x mono outputs
- Electronic I/O balancing
- Inputs can accept balanced and unbalanced connections
- Redundant power connection via PS1 Power Station
- Front or rear mounting
- Includes rack ears
